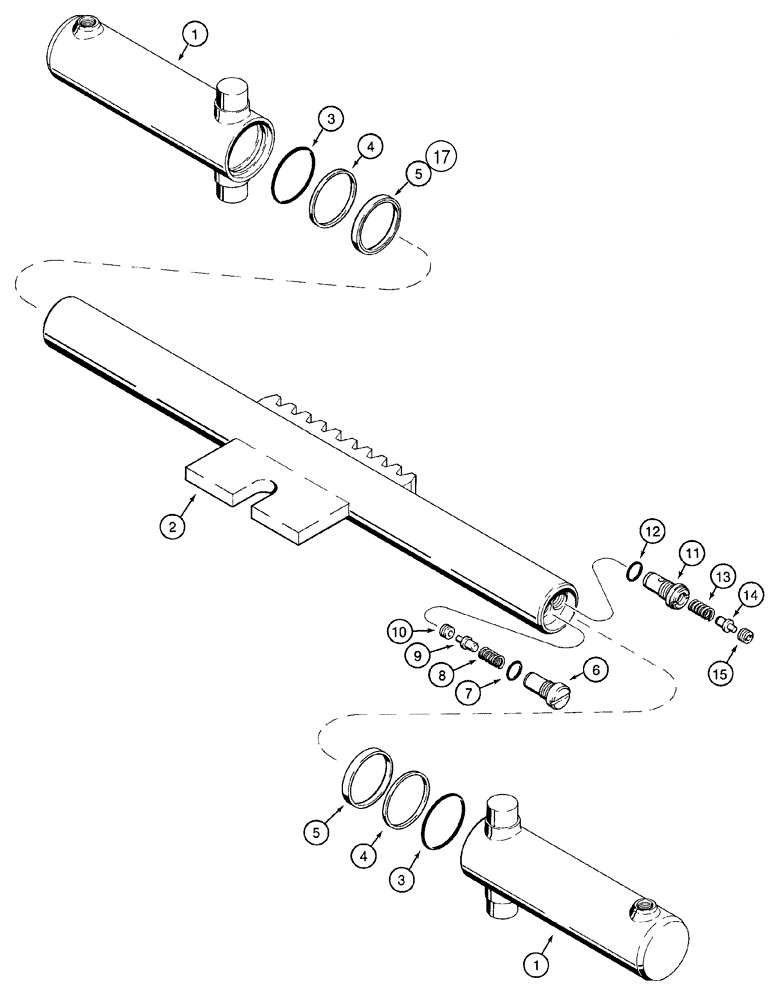

Запчасти Case IH 75XT (08-53) - CYLINDER ASSY - BACKHOE SWING (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

H673149

CYLINDER ASSY.

70 ID x 254 mm strk, Swing, Consists Of 1 - 15, No Longer Available, Order 379623A1

1шт.

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk, Swing, Consists Of 1, 2, 6 - 17

1шт.

1

H439098

BARREL

Used With H673149

2шт.

1

398164A1

TUBE

Used With 379623A1

2шт.

2

H439097

ROD

Used With H673149

1шт.

2

398163A1

PISTON ROD

Used With 379623A1

1шт.

3

H743591

O-RING

Used With H673149

2шт.

4

H754606

WASHER

Used With H673149

2шт.

5

H215202

SEAL ASSY.

Used With H673149

2шт.

H53033

LOCK VALVE

Consists Of 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

8

F37883

SPRING

1шт.

9

H138362

SPOOL

1шт.

10

NSS

NOT SOLD SEPARAT

Seat

1шт.

H53025

LOCK VALVE

Consists Of 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

13

F37883

SPRING

1шт.

14

H138362

SPOOL

1шт.

15

NSS

NOT SOLD SEPARAT

Seat

1шт.

16

NSS

NOT SOLD SEPARAT

Seal, U-Cup, Used With 379623A1, Order 398166A1, Not Illustrated

2шт.

17

NSS

NOT SOLD SEPARAT

Seal, Used With 379623A1, Order 398166A1

2шт.

H53041

SEAL ASSY.

Consists Of 3, 4, 5, 7, 12, Used With H673149

1шт.

398166A1

KIT

Used With 379623A1

1шт.
