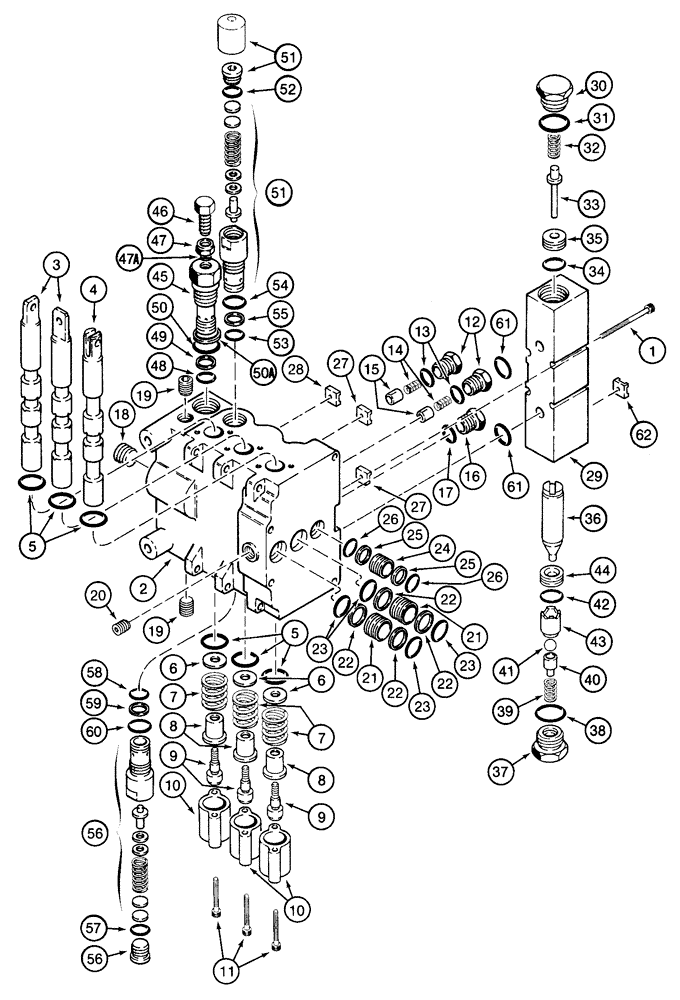

Запчасти Case IH 75XT (08-51) - VALVE, CONTROL - BACKHOE (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

Inlet Section

1шт.

H674500

VALVE

Backhoe, Consists Of 1 - 62, Also Includes Figure 08-50 - 08-52

1шт.

1

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674530

VALVE

Consists Of 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

2шт.

4

NSS

NOT SOLD SEPARAT

Spool

1шт.

5

H438030

O-RING

5/8 x 13/16

6шт.

H438021

SET

Consists Of 6 - 11

3шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

7

N9539

TENSION SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt

1шт.

10

NSS

NOT SOLD SEPARAT

Cap

1шт.

11

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

H438024

SET

Consists Of 12 - 15

2шт.

12

H438231

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

16

H438231

PLUG

Includes 17

1шт.

18

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

20

H438960

PLUG

1шт.

H674500

VALVE

Control

1шт.

21

H438028

TUBE

Large, Includes 22, 23

2шт.

22

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

2шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

H438029

TUBE

Small, Includes 25, 26

1шт.

25

H438044

GASKET

2шт.

26

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

27

100403A1

PLATE

PLATE, LARGE 1,854 mm (0,073 in)

2шт.

28

H438041

LARGE PLATE

PLATE, LARGE 3,505 mm (0,138 in)

1шт.

100405A2

BLOCK ASSY.

Consists Of 29 - 44

1шт.

29

NSS

NOT SOLD SEPARAT

Body

1шт.

111935A1

SET OF PARTS

Consists Of 30 - 36

1шт.

30

113751A1

PLUG

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

113747A1

SPRING

1шт.

33

H438334

VALVE

1шт.

34

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

113750A1

SEAT

1шт.

36

113749A1

PLUNGER

1шт.

37

H438031

PLUG

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

102712A1

SPRING

1шт.

40

H438032

SLEEVE VALVE

1шт.

41

113748A1

BALL

1шт.

42

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

H438033

CUP

1шт.

44

113746A1

SEAT

1шт.

H438940

VALVE, PRESSURE RELI

EF Consists Of 45 - 50A

1шт.

45

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674500

VALVE

Control

1шт.

H674535

GASKET KIT

Consists Of 46 - 50A

1шт.

46

NSS

NOT SOLD SEPARAT

Bolt

1шт.

47

NSS

NOT SOLD SEPARAT

Nut

1шт.

47a

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

5/16 x 1/16

1шт.

48

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

49

H438044

GASKET

1шт.

50

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

50a

H438329

GASKET

1шт.

H438952

VALVE, PRESSURE RELI

EF 1800-1900 psi, Consists Of 51 - 55

1шт.

51

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674536

O-RING

Consists Of 52 - 55

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

H438947

VALVE, PRESSURE RELI

EF 4500-4600 psi, Consists Of 56 - 60

1шт.

56

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674536

O-RING

Consists Of 57 - 60

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

59

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

60

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

61

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

62

H438941

ORIFICE

2,388 mm (0,094 in)

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

57

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
