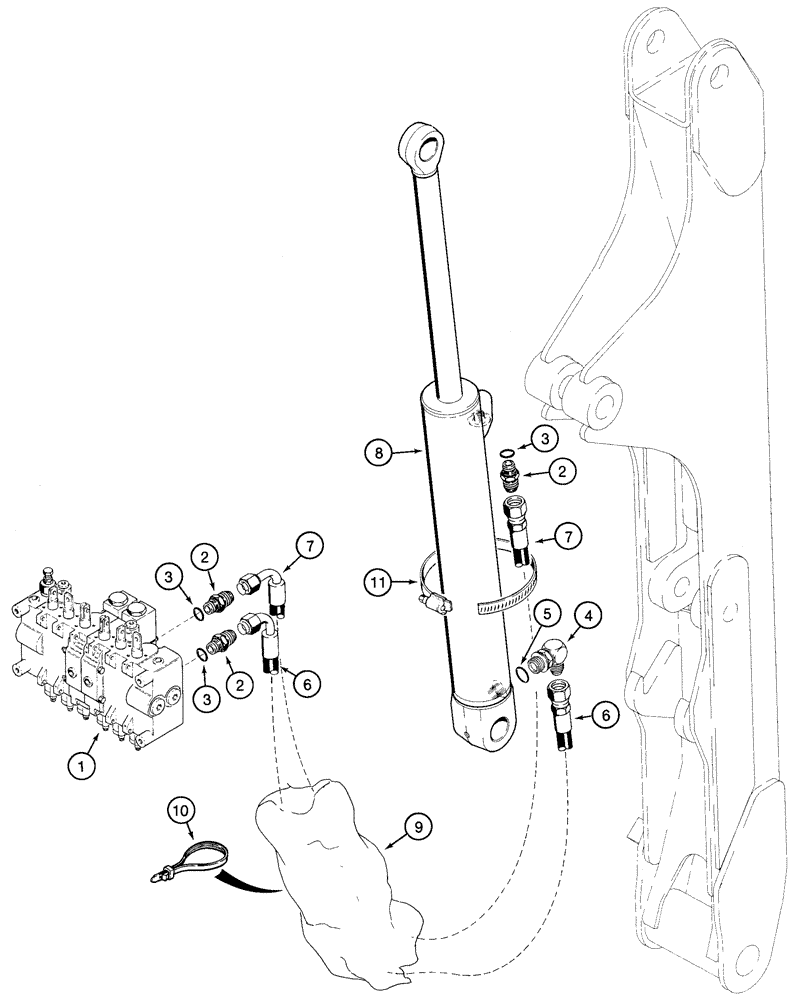

Запчасти Case IH 75XT (08-46) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

With Hoses at Control Valve

1шт.

1

H674500

VALVE

Backhoe, See Figure 08-50 - 08-52

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H438194

HOSE

2150 mm (84/3/4 in)

1шт.

7

H438193

HOSE

2750 mm (108-3/8 in)

1шт.

8

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk, Dipper, See Figure 08-55, Replaces 1346411C2

1шт.

9

H439063

SLEEVE

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

11

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.
