Запчасти Case IH 75XT (08-44) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (NORTH AMERICA) (08) - HYDRAULICS

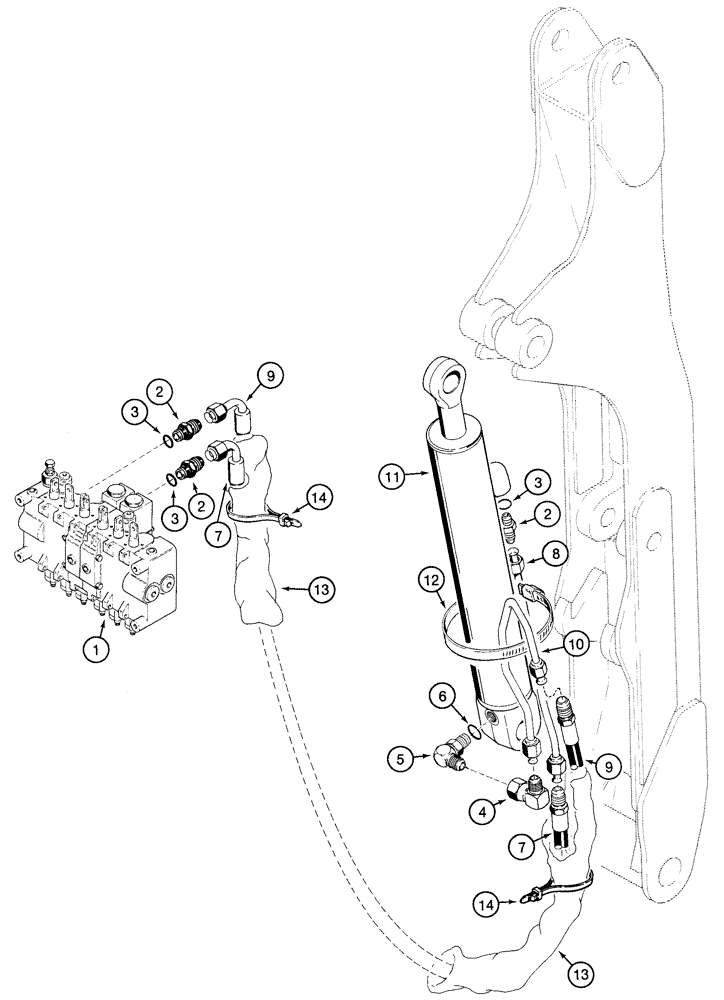

Схема запчастей Case IH 75XT - (08-44) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (NORTH AMERICA) (08) - HYDRAULICS
13
11
12
5
3
1
7
2
13
3
9
4
8
14
14
10
2
6
7
2
9
3

Артикул

Название

Примечание

Количество

D125 Backhoe

1шт.

With Hoses at Control Valve

1шт.

1

H674500

VALVE

Backhoe, See Figure 08-50 - 08-52

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

Includes 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H438195

HOSE

1675 mm (66 in)

1шт.

8

H674565

TUBE,0.5" OD

1шт.

9

H438684

HOSE

1725 mm (68 in)

1шт.

10

H674566

TUBE,0.5" OD

1шт.

11

1346450C2

CYLINDER ASSY.

76 ID x 551 mm strk, Boom, See Figure 08-54

1шт.

12

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

13

H439063

SLEEVE

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

Выбрано товаров: 16
