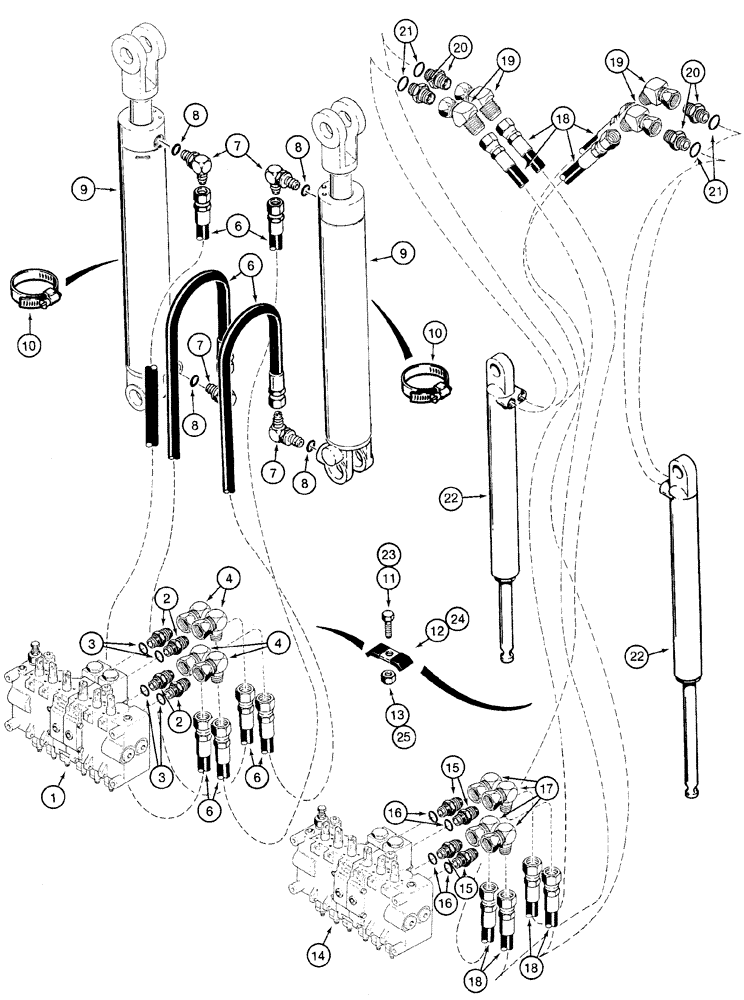

Запчасти Case IH 75XT (08-43) - HYDRAULIC SYSTEM - BACKHOE STABILIZER CYLINDER (NORTH AMERICA) (08) - HYDRAULICS

D125 Backhoe

1шт.

Fold Down Stabilizers

1шт.

1

H674500

VALVE

Backhoe, See Figure 08-50 - 08-52

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

6

139517C1

HYDRAULIC HOSE

2032 mm (80 in)

4шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 8

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

76 ID x 406 mm strk, Stabilizer, See Figure 08-57

2шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

R17319

CLAMP

2шт.

13

232-4115

LOCK NUT,5/16"-18, GC

2шт.

Vertical Stabilizers

1шт.

14

H674500

VALVE

Backhoe, See Figure 08-50 - 08-52

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 16

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

18

139517C1

HYDRAULIC HOSE

2032 mm (80 in)

4шт.

19

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

4шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 21

4шт.

22

H514117

CYLINDER BLOCK

51 ID x 305 mm strk, Stabilizer, See Figure 08-58

2шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

24

R17319

CLAMP

2шт.

25

232-4115

LOCK NUT,5/16"-18, GC

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
