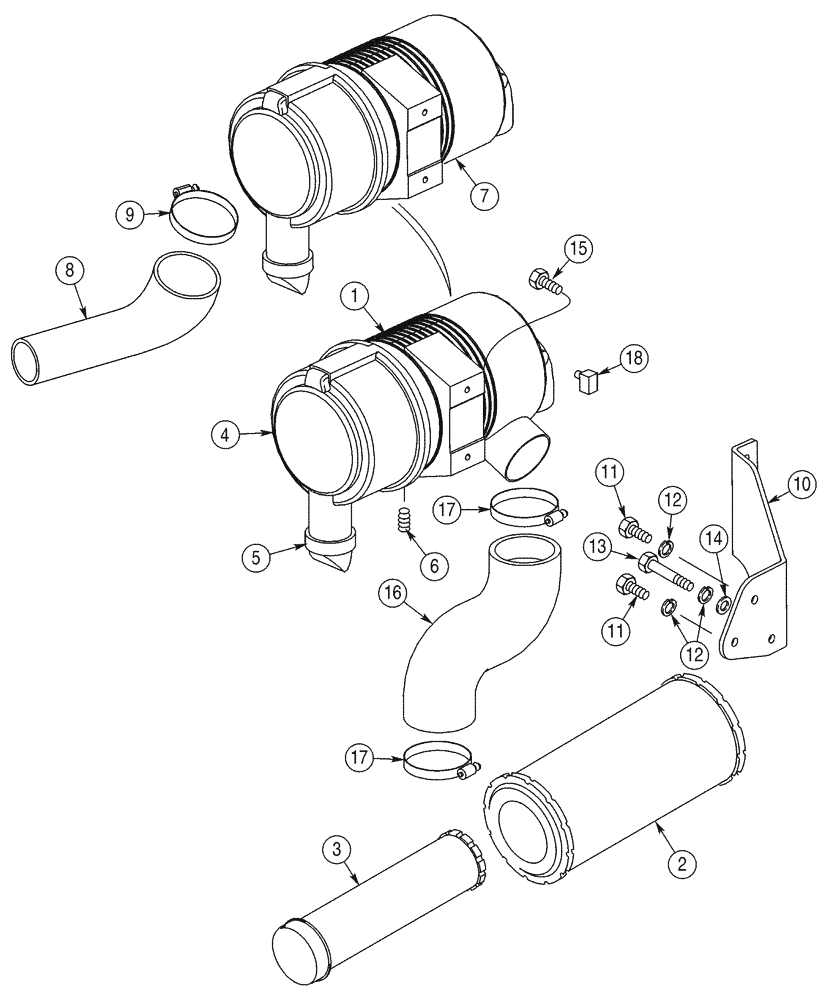

Запчасти Case IH 75XT (02-06) - AIR CLEANER - ENGINE (02) - ENGINE

If Used

1шт.

403009A1

AIR CLEANER

Consists Of 1 - 6, N.A. Only

1шт.

1

440830A1

BODY

1шт.

2

222425A1

AIR FILTER

Primary

1шт.

3

222429A1

AIR FILTER

Secondary

1шт.

4

440831A1

FILTER COVER

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

6

236690A1

PLUG

1шт.

7

403087A1

AIR CLEANER

Component Parts Not Serviced Separately, Europe Only

1шт.

8

87573940

HOSE

Intake Tube; Replaces 315522A1

1шт.

9

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

10

87582485

BRACKET

Replaces 257865A2, 257865A1

1шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

16

257823A1

INTAKE AIR HOSE,76.00 mm ID x 180.00 mm, SAE J200

1шт.

17

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

18

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
