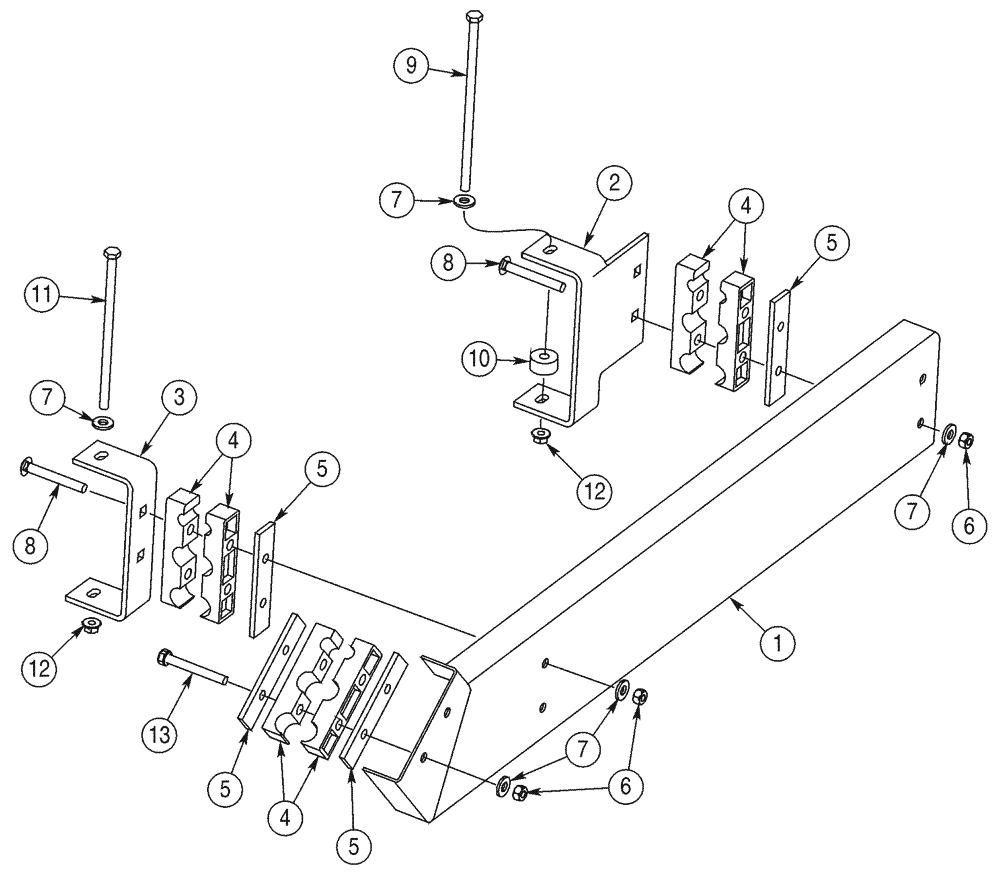

Запчасти Case IH 75XT (08-31) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

Cover and Mounting

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

413169A1

COVER

For Decal 303844A1, See Figure 09-59

1шт.

2

413168A1

BRACKET

1шт.

3

413167A1

BRACKET

1шт.

4

256974A2

FIXING BRACKET

6шт.

5

256976A1

BAR

4шт.

6

832-41410

NUT,M10 x 1.5, Cl 10

6шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

8

811-10080

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

4шт.

9

814-10230

BOLT,Hex, M10 x 1.5 x 230mm, Cl 8.8

M10 x 230

1шт.

10

408046A1

SPACER

1шт.

11

814-10205

BOLT,Hex, M10 x 1.5 x 205mm, Cl 8.8

M10 x 205

1шт.

12

411345A1

LOCK NUT

2шт.

13

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.
