Запчасти Case IH 75XT (08-18) - VALVE, CONTROL - VALVES, RELIEF (08) - HYDRAULICS

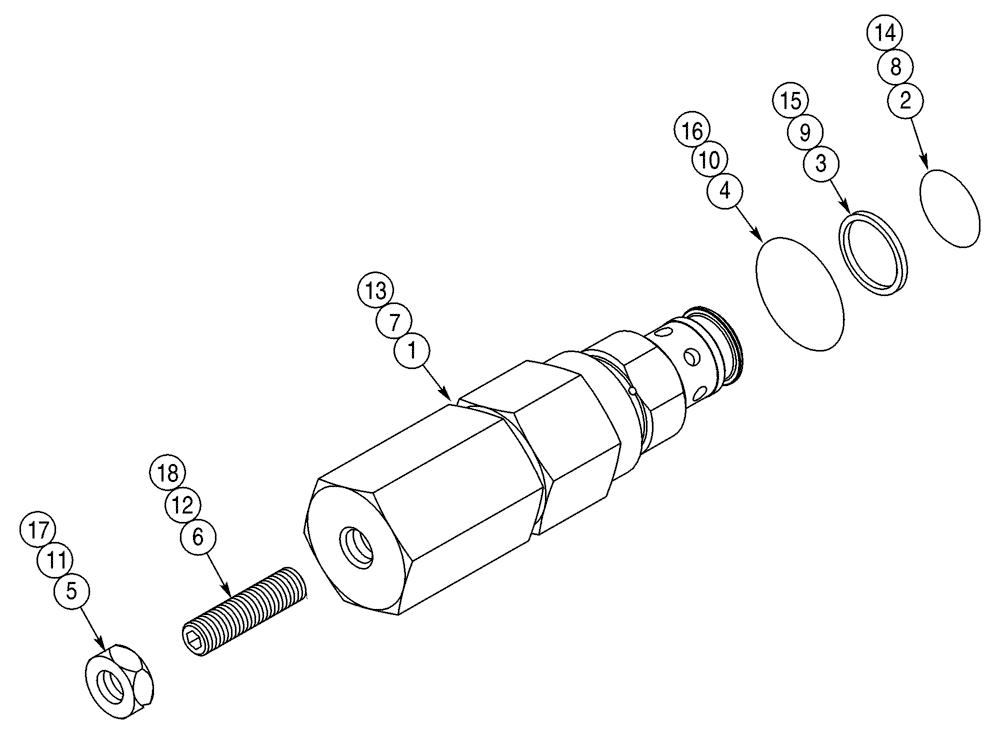

Схема запчастей Case IH 75XT - (08-18) - VALVE, CONTROL - VALVES, RELIEF (08) - HYDRAULICS
2
11
5
6
16
15
8
18
9
4
10
12
7
1
13
14
3
17

Артикул

Название

Примечание

Количество

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

234828A1

VALVE

3100 psi, #251831A4 (2), 251831A5 (1), Includes 1 - 6, For Service Of External Seals, Internal Component Parts Are Serviced Separately

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

6

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

186709A1

VALVE

3800 psi, Includes 7 - 12, For Service Of External Seals, Internal Component Parts Are Serviced Separately

2шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

12

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

328852A1

VALVE

2850 psi, Used In 251831A5, Includes 13 - 18, For Service Of External Seals, Internal Component Parts Are Serviced Separately

1шт.

13

NSS

NOT SOLD SEPARAT

Body

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

18

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

5/16 NFx1-1/4

1шт.

249533A1

SEAL KIT

Seal, Incl. Ref 7, 12, 18 - 20 (08-13); Ref 1, 7, 9, 18, 21, 37, 38, 39 (08-16); Ref 2 - 4, 8 - 10 (08-18)

1шт.

Выбрано товаров: 24
