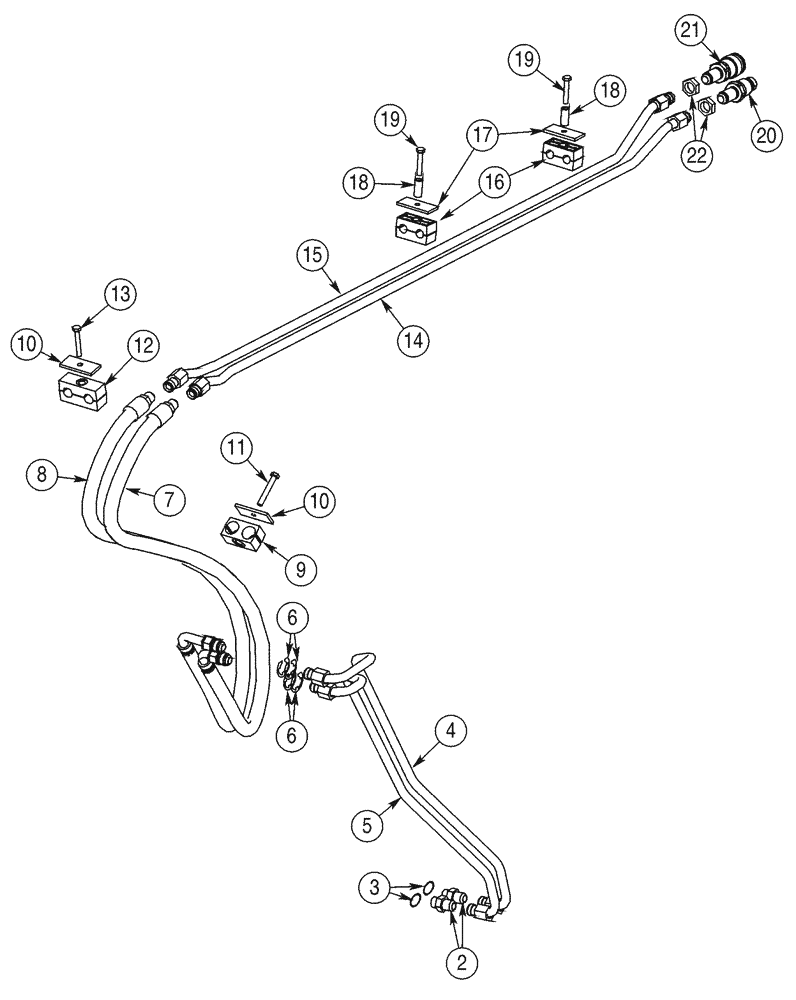

Запчасти Case IH 75XT (08-08) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

417369A1

VALVE

1 spool, Auxiliary, Component Parts Not Serviced Separately, Not Illustrated, See Figure 08-20

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

418941A1

TUBE

Attaches To Control Valve

1шт.

5

418940A1

HOSE ASSY.

Attaches To Control Valve

1шт.

6

103-3398

SNAP RING,#X98, .822" Dia, E-Type

4шт.

7

293623A2

HOSE ASSY.,15.88mm ID x 1315mm L

1315 mm (51-7/8 in)

1шт.

8

281948A2

HOSE ASSY.,15.88mm ID x 1380mm L

1380 mm (54-3/8 in)

1шт.

9

225529A1

CLAMP,Dual, 25.4mm ID

2 piece

1шт.

10

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

11

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

12

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID, Two Piece

1шт.

13

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

14

295610A4

HYD TUBE,1547, 38 mm Length

1шт.

15

295608A4

HYD TUBE,1594, 66 mm Length

1шт.

16

257857A1

CLAMP

2 piece

2шт.

17

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

18

259905A1

SPACER

2шт.

19

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

20

393395A1

COUPLING, BREAK AWAY

Male, Component Parts Not Serviced Separately

1шт.

21

393394A1

COUPLING, BREAK AWAY

Female, Component Parts Not Serviced Separately

1шт.

22

595460

BHD LOCK NUT,7/8" - 14

7/8

2шт.
