Запчасти Case IH 75XT (08-06) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS

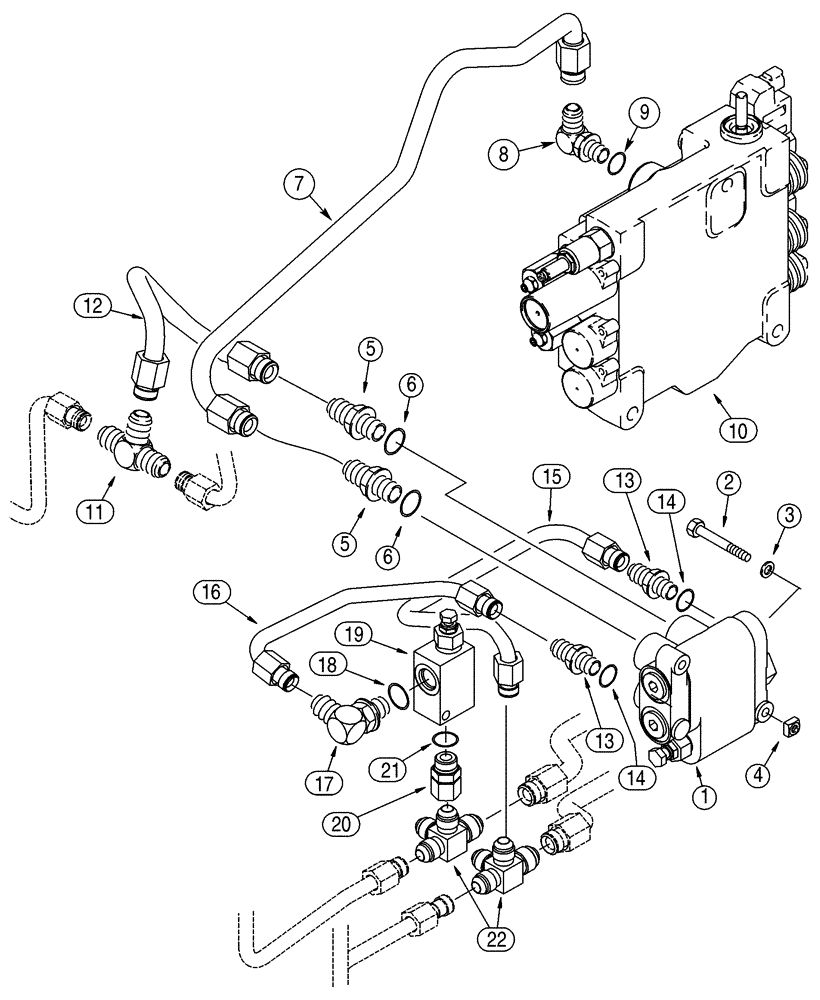

Схема запчастей Case IH 75XT - (08-06) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS
6
13
16
8
5
13
17
18
22
15
4
14
10
2
5
20
6
3
4
7
1
12
11
19
21
9

Артикул

Название

Примечание

Количество

1

280126A2

VALVE

See Figure 08-19

1шт.

2

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

307974A1

PIPE

JAF0255768-

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

REF

INSTRUCTION

3 spool, Valve, Control, North American Models -JAF0318921, European Models -JAF0352168, See Figure 08-13, 08-16

1шт.

10

REF

INSTRUCTION

3 spool, Valve, Control, North American Models JAF0318922-, European Models JAF0352169-, See Figure 08-15, 08-17

1шт.

11

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

See Note

1шт.

12

284832A2

PIPE

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

276038A3

PIPE

1шт.

16

297773A1

PIPE

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

294650A1

VALVE

1шт.

20

1327736C1

ELBOW

3/4 fl x 3/4 Or, Includes 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

232857A1

TEE

See Note

2шт.

Note:See Figure 08-11 - 08-05 for continuation of hydraulic system.

1шт.
