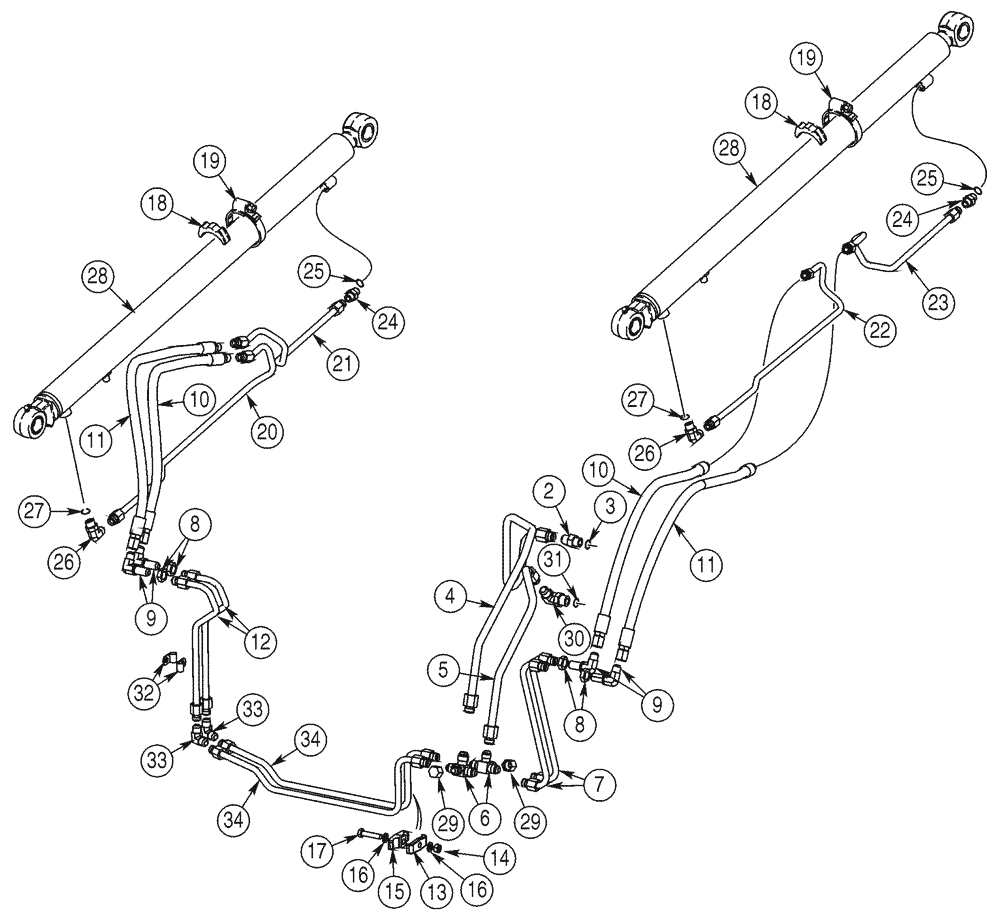

Запчасти Case IH 75XT (08-02) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

North American Models JAF0318922-

1шт.

European Models JAF0352169-

1шт.

1

409062A2

VALVE

See Figure 08-15, 08-17

1шт.

1

87431787

VALVE

Control; See Figure 08-08, 08-09; If Used; Replaces 409062A2

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

419002A1

TUBE

Lower, Attaches To Control Valve

1шт.

5

418990A1

TUBE

Raise, Attaches To Control Valve

1шт.

6

280107A1

TEE

2шт.

7

284834A3

TUBE,280, 66 mm Length

Right Hand

2шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

9

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

10

258892A3

HOSE ASSY.,12.7mm ID x 892mm L

892 mm (35-1/8 in), Closed End

2шт.

11

258893A4

HOSE ASSY.,12.7mm ID x 922mm L

922 mm (36-5/16 in), Rod End

2шт.

12

418998A1

TUBE

Lift, Left Hand

2шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

14

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

15

D120679

CLAMP,Tube, 1/2"

1шт.

17

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

18

255245A1

BLOCK

2шт.

19

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

20

282738A4

TUBE,12.7 mm OD, 651, 126 mm Length

Left Hand, Closed End

1шт.

21

282740A5

TUBE,454, 112 mm Length

Left Hand, Rod End

1шт.

22

282734A4

TUBE,651, 126 mm Length

Right Hand, Closed End

1шт.

23

282736A5

TUBE,454, 96 mm Length

Right Hand, Rod End

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

63,5 ID x 1049 mm strk, Lift, See Figure 08-27

2шт.

336187A1R

REMAN-HYD CYLINDER

75XT

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

29

218-755

CAP,37 Degree, 3/4"-16

Models without Ride Control

2шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Inc. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

33

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

34

419000A1

TUBE

Lift, Left Hand

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
