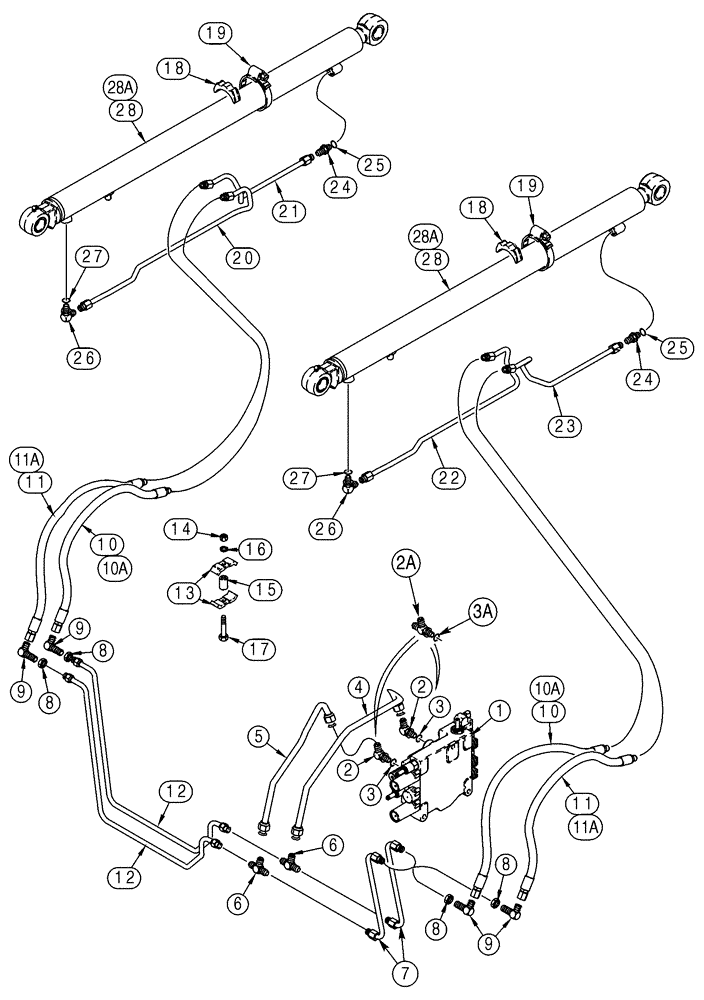

Запчасти Case IH 75XT (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

251831A5

VALVE

3 spool, Replaces 251831A4, See Figure 08-13, 08-16

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Inc. 3

2шт.

2a

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl br x fl x Or, Models With Ride Control, See Figure 08-09, Includes 3A

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

293086A1

PIPE

1шт.

5

293084A1

PIPE

1шт.

6

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

7

284834A2

PIPE

Right Hand

2шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

9

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

10

258892A2

HOSE ASSY.

840 mm (33-1/8 in), Closed End, No Longer Available, Order 258892A3, REF 10A, 258893A4, REF 11A

2шт.

10a

258892A3

HOSE ASSY.,12.7mm ID x 892mm L

892 mm (35-1/8 in), Closed End

2шт.

11

258893A3

HOSE ASSY.

885 mm (34-7/8 in), Rod End

2шт.

11a

258893A4

HOSE ASSY.,12.7mm ID x 922mm L

922 mm (36-5/16 in), Rod End

2шт.

12

296372A1

PIPE

Left Hand

2шт.

13

D138055

CLAMP

4шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

131601A1

SPACER

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

18

255245A1

BLOCK

2шт.

19

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia

2шт.

20

282738A3

PIPE

Left Hand, Closed End

1шт.

21

282740A4

PIPE

Left Hand, Rod End, Replaces 282740A3

1шт.

22

282734A3

PIPE

Right Hand, Closed End

1шт.

23

282736A4

PIPE

Right Hand, Rod End, Replaces 282736A3

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

305509A2

CYLINDER ASSY.

57 ID x 1049 mm strk, Lift, No Longer Available, Order 336187A1, REF 28A, See Figure 08-21

2шт.

336187A1R

REMAN-HYD CYLINDER

75XT, Reman for New P/N 305509A2

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

28a

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

63,5 ID x 1049 mm strk, Lift, See Figure 08-22

2шт.

336187A1R

REMAN-HYD CYLINDER

75XT

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.
