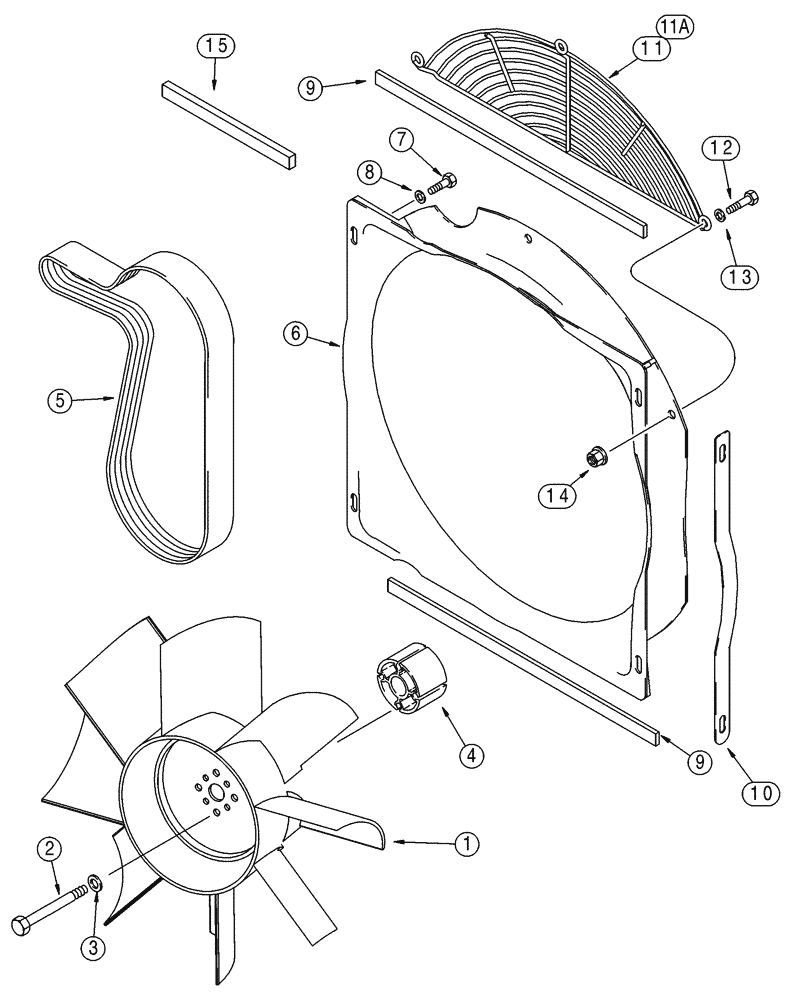

Запчасти Case IH 75XT (02-02) - FAN - FAN BELT (02) - ENGINE

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

315506A1

FAN

508 mm

1шт.

2

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

4

A184545

SPACER

43 mm, Replaces A184523

1шт.

5

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan, N.A. Only

1шт.

5

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

Fan, Europe Only

1шт.

6

241140A2

DEFLECTOR

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

295617A1

SEAL

485 mm (19-1/8 in), Upper And Lower

2шт.

10

258663A1

SEAL

Side

2шт.

11

247610A2

PROTECTOR

Fan, Europe Only, No Longer Used, Order 321704A2, REF 11A

1шт.

11a

321704A2

PROTECTOR

Fan, Replaces 321704A1

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

14

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

15

295618A1

SEAL

230 mm (9-1/8 in), Upper

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
