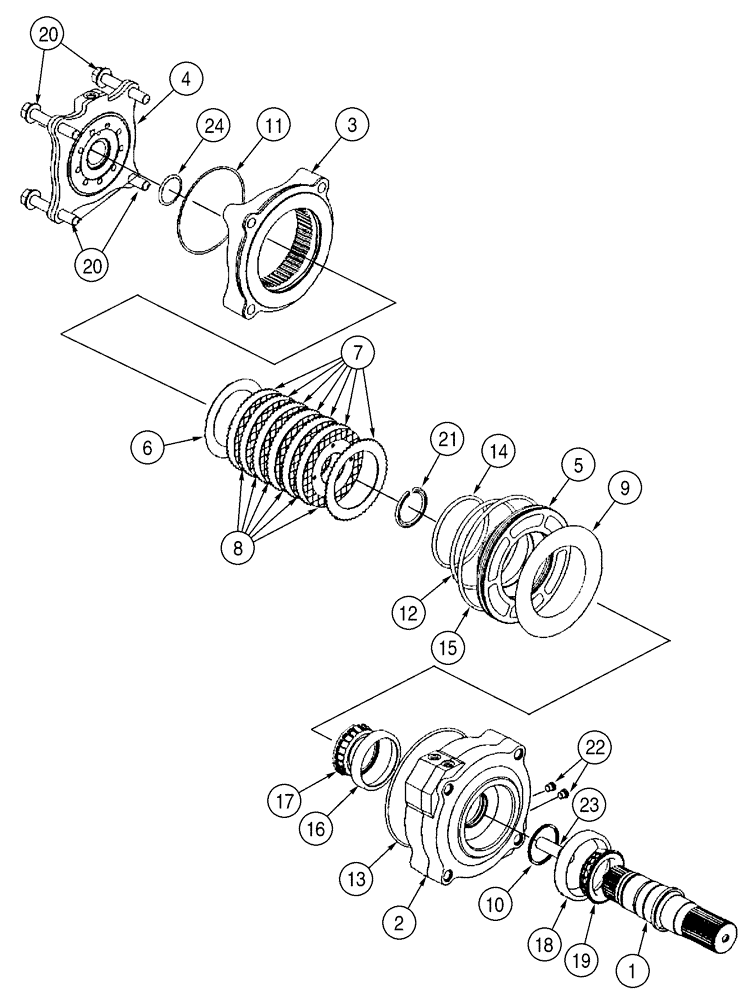

Запчасти Case IH 75XT (07-04) - BRAKE - HYDRAULIC (07) - BRAKES

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

401273A1

BRAKE ASSY.

Incl. 1 - 24, JAF0318182 -

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Sprocket

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Friction

1шт.

4

NSS

NOT SOLD SEPARAT

Flange, Motor

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

Shim, Friction

1шт.

401268A1

KIT

Includes 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Stator

5шт.

8

NSS

NOT SOLD SEPARAT

Lining, Brake

6шт.

9

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

401267A1

SEAL KIT

Seal, Incl. 10 - 15, 21, 24

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Quad Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

16

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

17

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

1шт.

18

29214H

BEARING CUP,110mm OD x 18.82mm W

4-5/16 OD

1шт.

19

496535C1

BEARING ASSY,61.912 mm ID x 110 mm OD x 22 mm

1шт.

20

NSS

NOT SOLD SEPARAT

Bolt

1шт.

21

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Port End

1шт.

23

NSS

NOT SOLD SEPARAT

Plug, Shaft

1шт.

24

NSS

NOT SOLD SEPARAT

5/8 x 2, Seal, Shaft End

4шт.
