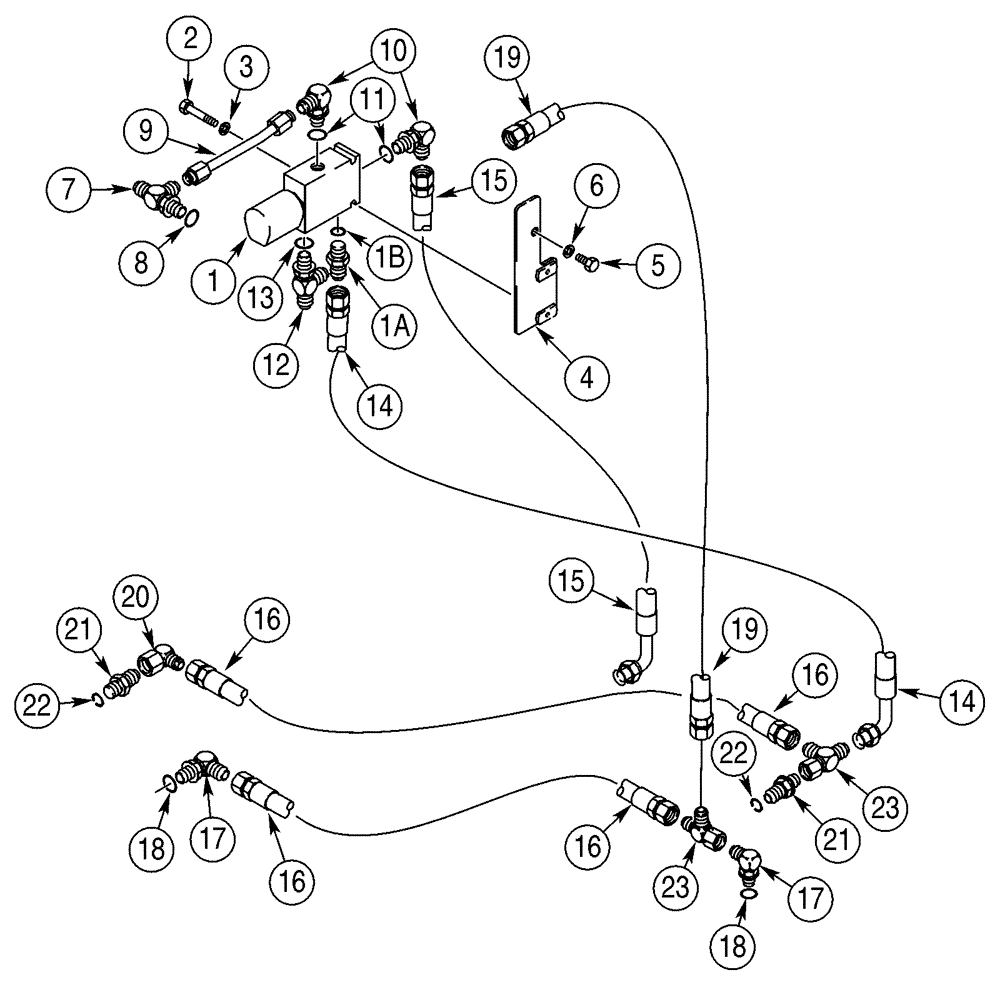

Запчасти Case IH 75XT (07-02) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

Models With Hydraulic Actuated Brake

1шт.

North American Models -JAF0318921

1шт.

European Models -JAF0352168

1шт.

1

187505C91

VALVE

See Figure 08-24

1шт.

1a

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 1B

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

293551A2

HOLDER

Valve Mounting

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 8

1шт.

9

293465A1

TUBE,9.53 mm OD, 159 mm Length

Valve

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Incl. 11

2шт.

12

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

7/16 fl x 9/16 fl x Or, Incl. 13

1шт.

14

311870A2

HOSE ASSY.

400 mm (15-3/4 in)

1шт.

15

397868A1

HOSE ASSY.

330 mm (13 in), Brake Valve to Case Drain, For Attaching Parts, See Figure 06-05

1шт.

16

398036A1

HOSE ASSY.

736 mm (29 in), Right Hand Brake Tee to Left Hand Brake Elbow

2шт.

17

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 18

2шт.

19

398205A1

HOSE ASSY.

485 mm (19-1/8 in), Solenoid Valve to Brake Release

1шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Left Hand Brake, Incl. 22

1шт.

21

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

9/16 fl x 7/16 Or, Incl. 22

2шт.

23

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Right Hand Brake

1шт.

401273A1

BRAKE ASSY.

See Figure 07-04

2шт.

2

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

1b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
