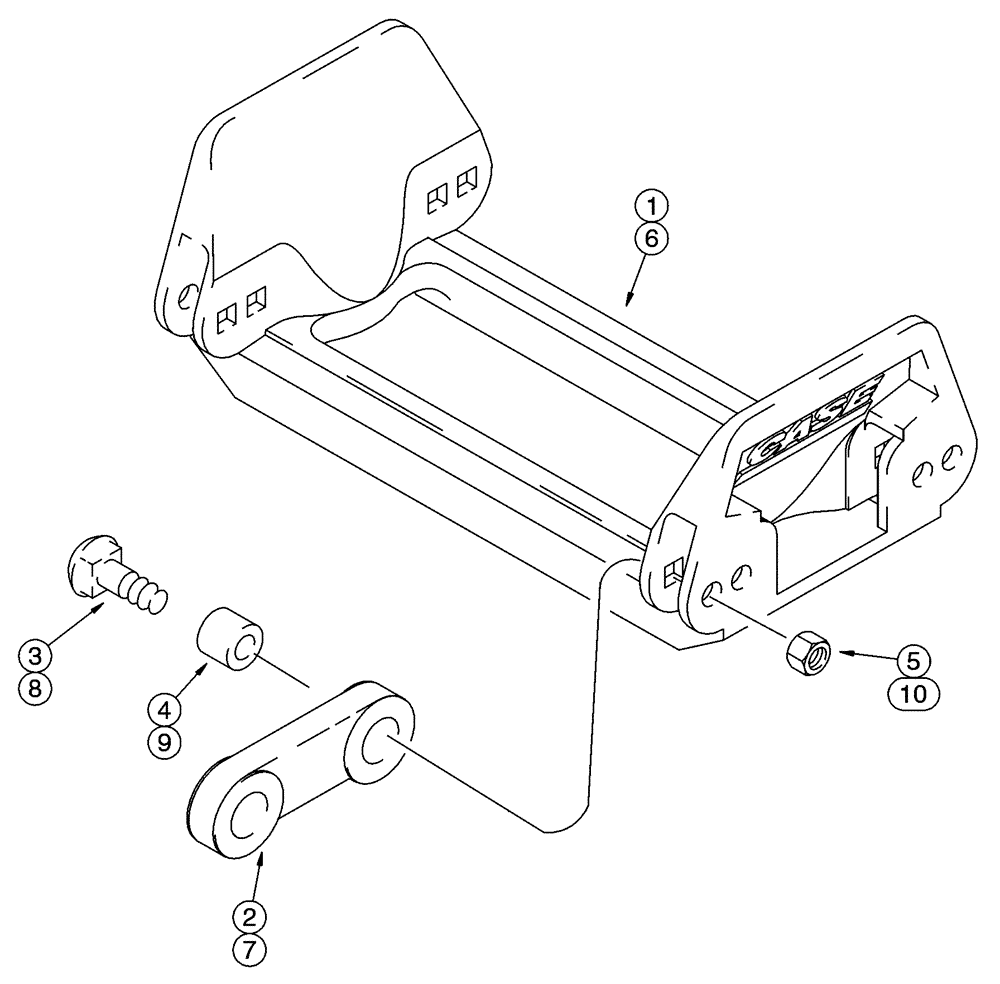

Запчасти Case IH 75XT (06-26) - TRACK - STEEL (NORTH AMERICA) (06) - POWER TRAIN

Used With 12 x 16.5 Inch Tire

1шт.

365917A1

ASSEMBLY

Incl. 1 - 5

2шт.

1

365259A1

PAD

19шт.

2

365261A1

LINK

38шт.

3

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

76шт.

4

365260A1

BUSHING

76шт.

5

231-4138

LOCK NUT,1/2"-13, GB

76шт.

Repair Kit

1шт.

294929A1

SET OF PARTS

Used With 12 x 16.5 Inch Tire, Incl. 6 - 10

1шт.

6

244709A1

TRACK SHOE

1шт.

7

244714A1

LINK

2шт.

8

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

2шт.

9

244710A1

RING

2шт.

10

231-4138

LOCK NUT,1/2"-13, GB

2шт.

Used With 10 x 16.5 Tire

1шт.

365933A1

ASSEMBLY

Incl. 1 - 5

2шт.

1

365934A1

PAD

18шт.

2

365261A1

LINK

36шт.

3

434-830

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 7/8" , Gr 5

72шт.

4

365260A1

BUSHING

72шт.

5

231-4138

LOCK NUT,1/2"-13, GB

72шт.
