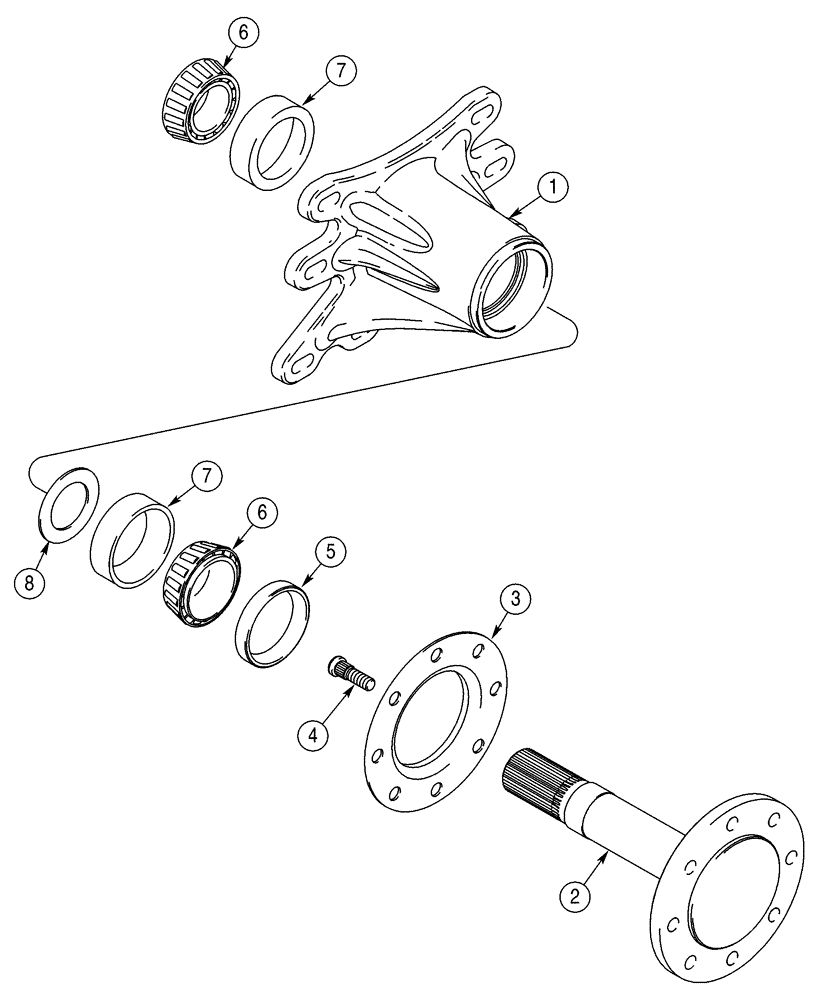

Запчасти Case IH 75XT (06-24) - AXLE ASSY JAF0317663 - (06) - POWER TRAIN

REF

INSTRUCTION

Axle Assy, Incl. 1 - 8

4шт.

1

386799A1

HUB ASSY.

Includes 7, 8

1шт.

338550A3

AXLE

Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Axle

1шт.

3

189995A1

FLANGE

1шт.

4

191048A2

STUD

M16

8шт.

5

341837A2

SEAL,63.5mm ID x 88.9mm OD x 14mm Thk

1шт.

6

D63653

ROLLER BEARING,2.0005" ID

2шт.

7

R32216

BEARING CUP,82 mm OD x 17 mm

3-1/4 OD

2шт.

8

197805A1

WASHER,51.8mm ID x 74mm OD x 3.2mm Thk

1шт.

NSS

NOT SOLD SEPARAT

Grease, Replaces 331-237, Not Illustrated

1шт.
