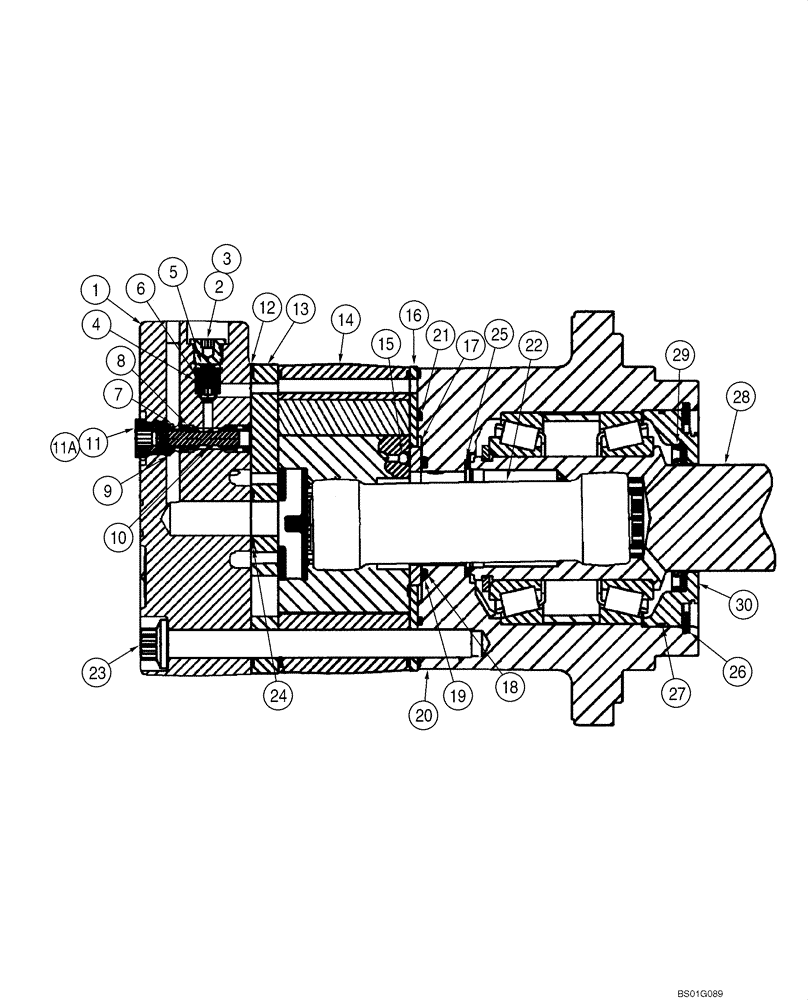

Запчасти Case IH 75XT (06-21A) - MOTOR ASSY (06) - POWER TRAIN

87457450

MOTOR, HYDRAULIC

Incl. 1 - 30; Replaces 394538A2, Char-lynn# 177-0003-003

2шт.

87457450R

REMAN-HYD MOTOR

2шт.

87457450C

Return Number

CORE-MOTOR HYDRAULIC

2шт.

87413040

SEAL KIT

Seal Kit; Incl. 3, 18, 19, 21, 24, 25, 27, 29

1шт.

1

87413036

CAP

1шт.

2

282787A1

PLUG

Incl. 3

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring; Order 87413040, Seal Kit

1шт.

4

438416A1

VALVE POPPET

1шт.

5

282789A1

SPRING

Relief Valve

1шт.

6

282788A1

SHIM

1шт.

7

438417A1

SLEEVE

2шт.

8

251511A1

VALVE POPPET

2шт.

9

251506A1

SPRING

Shuttle Valve

2шт.

10

365475A1

PISTON ASSY.

1шт.

11

282804A1

PLUG

Incl. 11A

1шт.

11a

NSS

NOT SOLD SEPARAT

O-Ring; Order 87413040, Seal Kit

1шт.

12

NSS

NOT SOLD SEPARAT

Seal; Order 87413040, Seal Kit

4шт.

13

438425A1

PLATE

1шт.

14

438426A1

GEAR-SET

1шт.

15

140784A1

BALL

2шт.

16

438427A1

PLATE

Outer

1шт.

17

438428A1

PLATE

Inner

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring; Order 87413040, Seal Kit

1шт.

19

NSS

NOT SOLD SEPARAT

Ring; Backup, Order 87413040, Seal Kit

1шт.

20

87413037

HOUSING

1шт.

21

NSS

NOT SOLD SEPARAT

Seal; Order 87413040, Seal Kit

1шт.

22

438430A1

DRIVE SHAFT

1шт.

23

438431A1

12 PT SCREW

9шт.

87413039

SPRING

Bellville Washer; Not Illustrated Separately

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring; Order 87413040, Seal Kit

1шт.

25

NSS

NOT SOLD SEPARAT

Seal; Order 87413040, Seal Kit

1шт.

26

100-21393

SNAP RING,3.938", Int, #393

1шт.

27

NSS

NOT SOLD SEPARAT

O-Ring; Order 87413040, Seal Kit

1шт.

28

87457447

SHAFT

Replaces 87413038

11шт.

29

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

30

438423A1

RETAINER

Front

1шт.
