Запчасти Case IH 70XT (06-05) - FILTER ASSY - MOUNTING (06) - POWER TRAIN

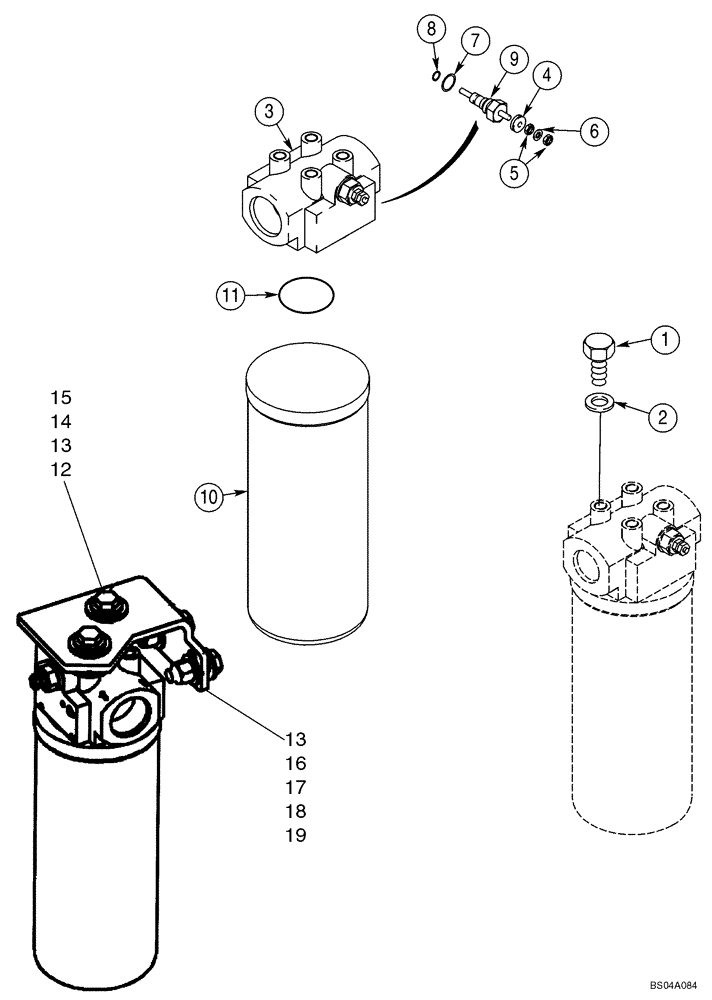

Схема запчастей Case IH 70XT - (06-05) - FILTER ASSY - MOUNTING (06) - POWER TRAIN
4
6
7
15
2
11
5
18
8
1
9
14
13
10
13
16
19
17
3
12

Артикул

Название

Примечание

Количество

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Mounting; If Used

2шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Mounting; If Used

2шт.

222756A2

FILTER ASSY

Return; Incl. 3 - 10

1шт.

3

222758A1

HEAD

Incl. N13268; If Used

1шт.

3

87439984

FILTER HEAD

Replaces 222758A1; Incl. N13268

1шт.

N13268

PRESSURE SWITCH

Incl. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

Washer, Special, Red, White

1шт.

5

129-667

NUT,#10-32, LH

2шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Indicator

1шт.

10

N9025

HYDRAULIC OIL FILTER

Incl. 11

1шт.

11

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

REF

INSTRUCTION

BOLT-ON MOUNTING

1шт.

12

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

14

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

4шт.

15

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Mounting, Radiator

2шт.

16

87403128

ANGLE

Filter Mount; Replaces 446002A1

1шт.

17

349192A1

SPACER

If Used

1шт.

18

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 23
