Запчасти Case IH 70XT (04-22) - WIPER, WINDSHIELD (04) - ELECTRICAL SYSTEMS

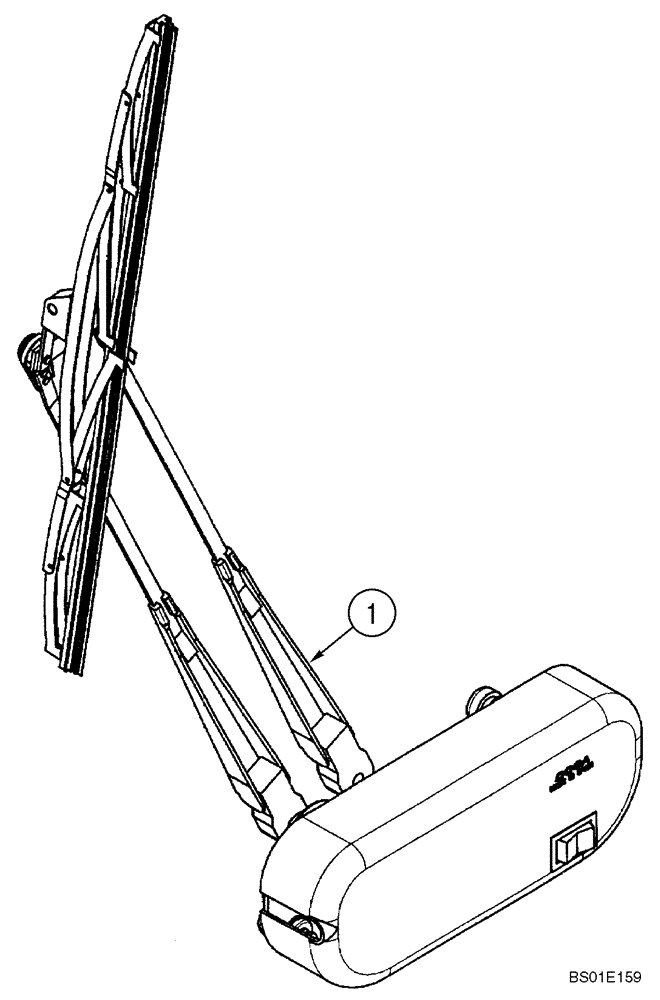

Схема запчастей Case IH 70XT - (04-22) - WIPER, WINDSHIELD (04) - ELECTRICAL SYSTEMS
1

Артикул

Название

Примечание

Количество

1

398129A2

KIT

Windshield Wiper Front; Replaces 398129A1; See Figure 09-30; Incl. 2 - 12; Components Not Illustrated

1шт.

2

442669A1

WIPER MOTOR

MOTOR, WIPER 12V; Incl. 3 - 6

1шт.

3

450028A1

COVER

Cover

1шт.

4

NSS

NOT SOLD SEPARAT

Harness

1шт.

5

NSS

NOT SOLD SEPARAT

Connector

1шт.

6

193865A1

WINDSHIELD WIPER SWI

Windshield Wiper Rocker

1шт.

7

442670A1

WIPER ARM

ARM, WIPER 450 mm (17-3/4 in); Spray Nozzle Is Not Serviced Separately, Must Order Arm Assy

1шт.

8

442671A1

WIPER BLADE

BLADE, WIPER 500 mm (19-11/16 in)

1шт.

9

442673A1

HOSE,915.00 mm

1шт.

10

442672A1

GROMMET

9 mm ID

2шт.

11

86988711

KIT

Wiper Mounting; Incl. 12 and Instructions

1шт.

12

87413626

MOUNTING PARTS

Wiper

1шт.

Выбрано товаров: 12
