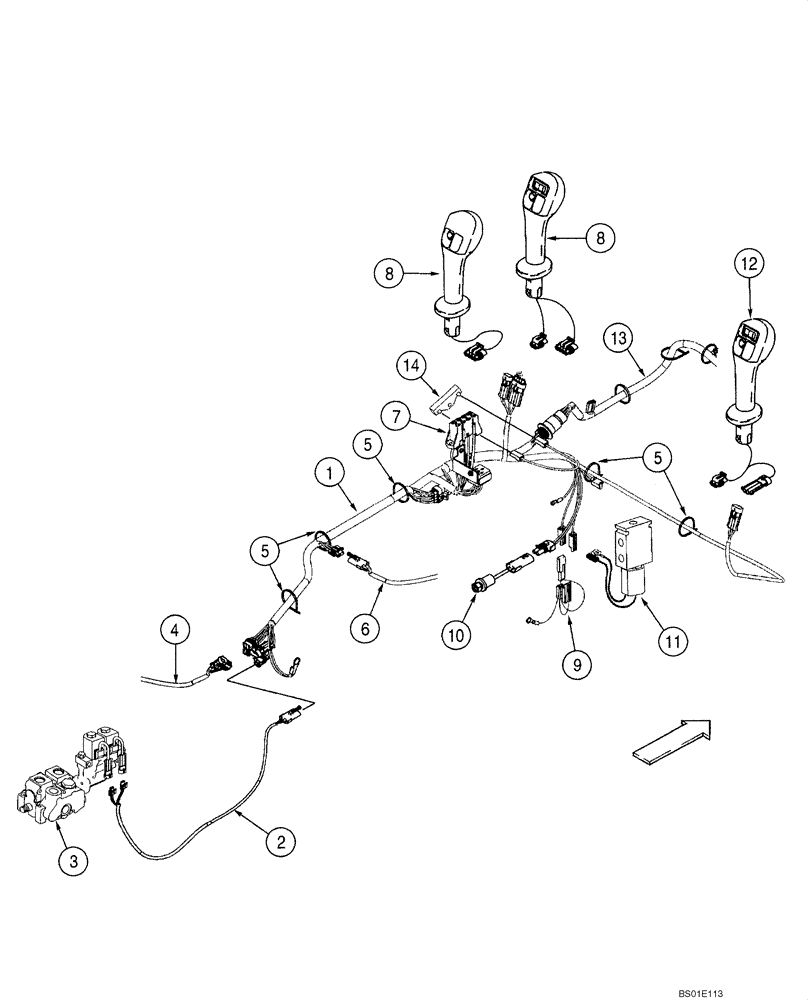

Запчасти Case IH 70XT (04-09) - HARNESS - CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

1

375633A8

HARNESS

Models With Chassis Options

1шт.

2

381005A1

HARNESS

Models With High Flow Gear; See Figure 08-25

1шт.

3

372194A2

VALVE

High Flow; See Figure 08-30

1шт.

4

426764A1

HARNESS

Models With Front Auxilliary Electric; See Figure 04-19

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

5шт.

6

400611A4

HARNESS

Models With Dual Self Level; See Figure 04-18

1шт.

7

245435C1

FUSE HOLDER

Block, Optional Fuse Block; See Figure 04-14

1шт.

8

REF

INSTRUCTION

Handle Control, Left Hand; See Figure 04-24

1шт.

9

394910A1

HARNESS

Hydraulic Coupler Valve; See Figure 08-07

1шт.

10

251905A2

SWITCH

Europe Only; Hydraulic Brake System; See Figure 07-02; If Used

1шт.

10

443897A1

SWITCH

Europe Only; Hydraulic Brake System; See Figure 07-02

1шт.

11

187505C91

VALVE

See Figure 08-23

1шт.

12

REF

INSTRUCTION

Handle Control; Right Hand; See Figure 04-23

1шт.

13

375634A4

HARNESS

Cab Options; See Figure 04-10

1шт.

14

107558C1

RESISTOR

25 ohm; Hydraulic Coupler; Time Delay; See Figure 04-14

1шт.
