Запчасти Case IH 70XT (04-06) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS

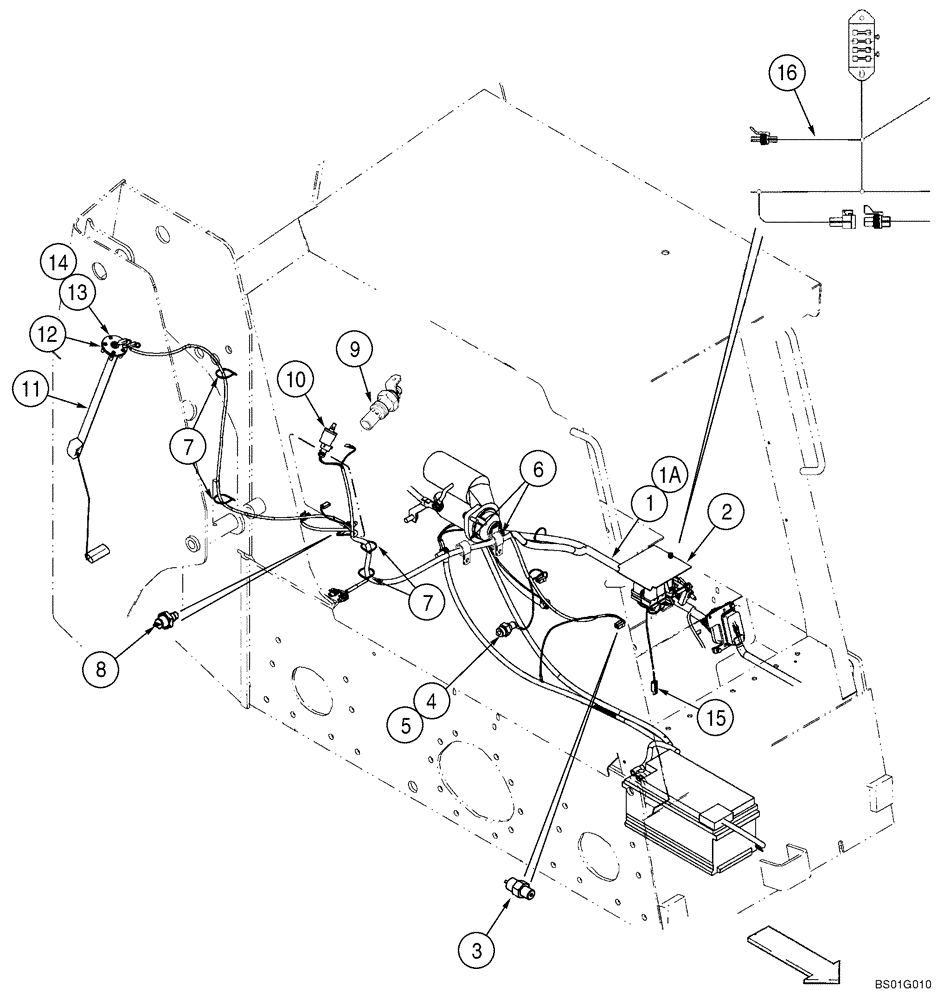

Схема запчастей Case IH 70XT - (04-06) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS
12
1a
2
6
13
11
3
9
7
14
16
1
15
10
8
4
5
7

Артикул

Название

Примечание

Количество

Fuse Block to Fuel Level Sender

1шт.

1

373663A7

HARNESS

Used On 60XT; Chassis

1шт.

1a

383427A6

HARNESS

Used On 70XT; Chassis

1шт.

2

REF

INSTRUCTION

Block, Main Fuse and Relay; See Figure 04-13

1шт.

3

405418A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm Control; See Figure 04-30

2шт.

4

313590A1

PLUG

1шт.

5

H439301

SWITCH

Hydraulic Temperature; Lower Case Drain Port Of Pump

1шт.

6

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

If Used

2шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

4шт.

8

277016A1

PRESSURE SWITCH

Oil Check Port, M10

1шт.

9

A77616

GLOW PLUG

Starting Aid; Models With Thermostart; See Figure 02-08

1шт.

10

293797A1

RESTRICTION SWITCH

Air; See Figure 02-05

1шт.

11

376843A4

SENDER UNIT

SENDER Fuel Level

1шт.

12

528359R4

GASKET,3.05mm Thk

1шт.

13

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

5шт.

14

196985A1

ROD,THREADED

THREADED ROD

5шт.

15

414647A1

HARNESS

Tandem Pump Neutral Override; Models Without Options Harness; Attaches To 187505C91, See Figure 08-23

1шт.

16

375633A8

HARNESS

Chassis Options; See Figure 04-09

1шт.

Выбрано товаров: 19
