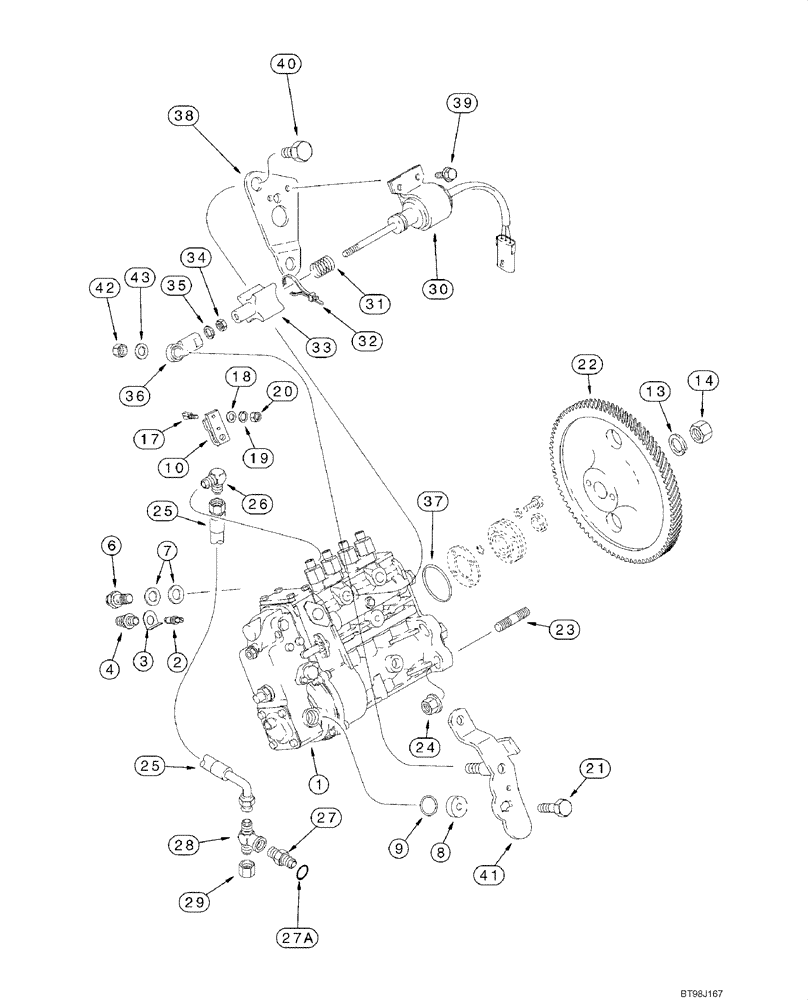

Запчасти Case IH 70XT (03-10) - FUEL INJECTION - PUMP AND DRIVE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

1

J930154

PUMP

Incl. 2 - 21; If Used

1шт.

1

JR930154

REMAN-INJECTION PUMP

Remanufactured, If Used

1шт.

1

JC930154

CORE-INJECTION PUMP

Return Part Number

1шт.

1

J991960

PUMP

Incl. 2 - 21, J802998

1шт.

1

JR991960

REMAN-INJECTION PUMP

Remanufactured Pump Assembly

1шт.

1

JC991960

CORE-INJECTION PUMP

Return Part Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

6

J932096

VALVE

If Used

1шт.

6

87409051

VALVE

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

8

691292C1

RETAINER

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

1808728C1

LEVER

If Used

1шт.

10

87438537

LEVER

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

1шт.

23

86991263

STUD,M10 x 1.5 x 55

(2-5/32"); Replaces J915036

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

Male

1шт.

27

J932321

UNION

Incl. 27A

1шт.

27b

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1/8 PT x 7/16

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12V; 1-3/4 in; Incl. 31 - 36; If Used

1шт.

30

J991167

SOLENOID

12V; 2 in; Incl. 31 - 36; If Used

1шт.

30

87420952R

REMAN-SOLENOID

60XT, 70XT

1шт.

30

87420952C

CORE-SOLENOID

Return Part Number

1шт.

30

87420952

SOLENOID VALVE

12V; Incl. 31 - 36; Service Replacement for J991167

1шт.

30

87420952R

REMAN-SOLENOID

60XT, 70XT

1шт.

30

87420952C

CORE-SOLENOID

Return Part Number

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

If Used

1шт.

36

87420849

END,1/4" - 28

Used With J991167, 87420952

1шт.

37

J935032

SEAL

1шт.

38

J930590

SUPPORT

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

2шт.

40

J991132

SCREW,Hex, M16 x 1.5 x 16mm, Gr 8.8

M16 x 16; Used With J991167, 87420952

2шт.

J802998

PACKAGE,SERVICE

Incl. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

Lever

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.
