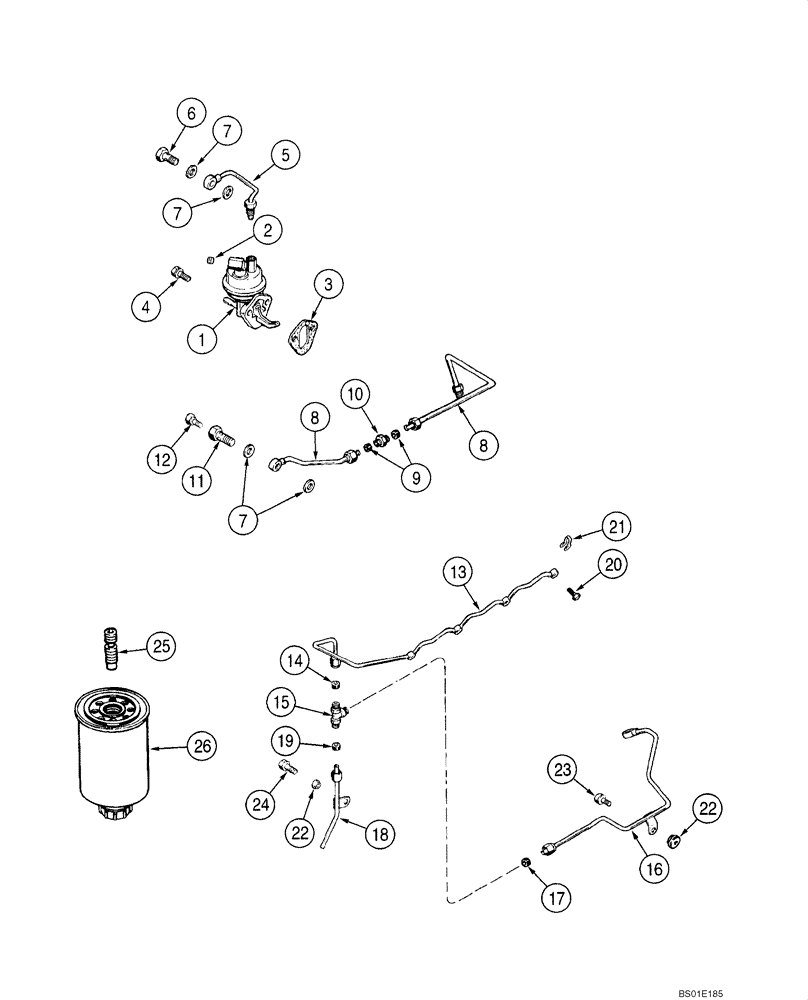

Запчасти Case IH 70XT (03-07) - FUEL FILTER - PUMP, TRANSFER, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

REF

INSTRUCTION

4-390 Emissions Certified Engine

1шт.

1

87416017

PUMP

Replaces J928143

1шт.

2

221-841

PLUG

1/4 PT

1шт.

3

J939258

GASKET,1.21mm Thk

Replaces J931059

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

1шт.

6

J903035

BANJO BOLT

M12 x 24

1шт.

7

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1,5 mm; Replaces J935171

4шт.

8

J918640

FUEL TUBE

Incl. 9, 10

1шт.

9

222-103

SLEEVE,5/16" Tube

2шт.

10

222-4

FITTING,9/16"-24, Flex Tube

5/16 OD

1шт.

J905860

BANJO BOLT

Incl. 11, 12

1шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

12

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

Replaces J905403

1шт.

13

J909695

FUEL TUBE

Incl. 14

1шт.

14

222-101

SLEEVE,3/16" Tube

1шт.

15

222-121

TEE,3/16", Flex Tubing

1шт.

16

J905699

FUEL TUBE,4.76 mm OD

Incl. 17

1шт.

17

222-101

SLEEVE,3/16" Tube

1шт.

18

J905692

FUEL TUBE

Incl. 19

1шт.

19

222-101

SLEEVE,3/16" Tube

1шт.

20

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

21

J903380

SEAL

4шт.

22

J928759

SEALING WASHER

4шт.

23

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

24

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

25

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

26

J931062

FILTER

No Longer Available, Order J286503

1шт.

26

J286503

FUEL FILTER

1шт.
