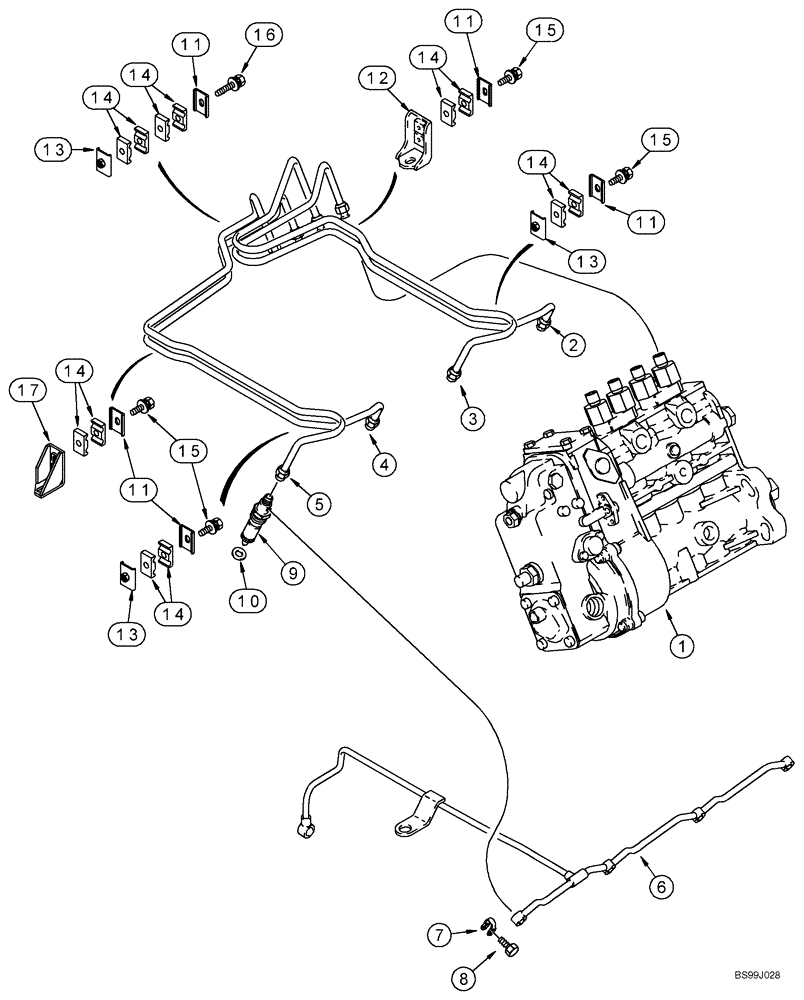

Запчасти Case IH 70XT (03-06) - FUEL INJECTION SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

1

J930154

PUMP

4T-390 Engine, See Figure 03-10

1шт.

1

J991960

PUMP

4T-390 Engine, See Figure 03-10

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J932160

FUEL TUBE,750 mm L

No. 4

1шт.

6

J927633

TUBE

1шт.

7

J903380

SEAL

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Special

4шт.

9

REF

INSTRUCTION

Nozzle Assy, See Figure 03-11

4шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm; Replaces J906659

4шт.

11

CURJ904711

CLAMP

5шт.

12

J282942

BRACKET

1шт.

13

J917717

BRACE

3шт.

14

J917746

CLAMP

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35, Special

1шт.

17

J919086

BRACKET

1шт.
