Запчасти Case IH 70XT (03-05) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

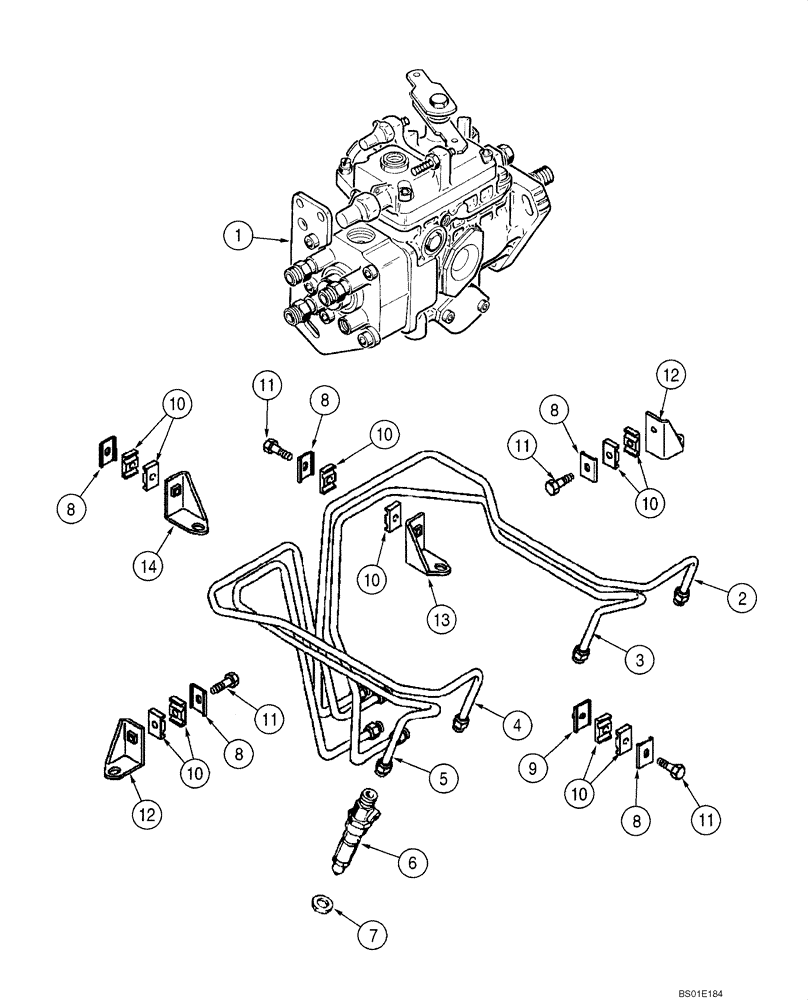

Схема запчастей Case IH 70XT - (03-05) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
10
3
8
9
10
6
11
7
14
8
11
11
13
8
5
8
10
4
2
10
11
10
1
12
12
8
10

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4-390 Emissions Certified Engine

1шт.

1

J935671

PUMP

See Figure 03-09

1шт.

1

JR935671

REMAN-INJECTION PUMP

1шт.

1

JC935671

CORE-INJECTION PUMP

Return Number

1шт.

2

J935691

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J935693

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J935696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J935698

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4

1шт.

6

REF

INSTRUCTION

Nozzle Assy; See Figure 03-11

4шт.

7

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm; See Figure 03-11; Replaces J906659

4шт.

8

CURJ904711

CLAMP

8шт.

9

J907546

BRACE

4шт.

10

J917746

CLAMP

16шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

8шт.

12

J935746

BRACE

2шт.

13

J935748

BRACE

1шт.

14

J935700

BRACE

1шт.

Выбрано товаров: 17
