Запчасти Case IH 70XT (02-28) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

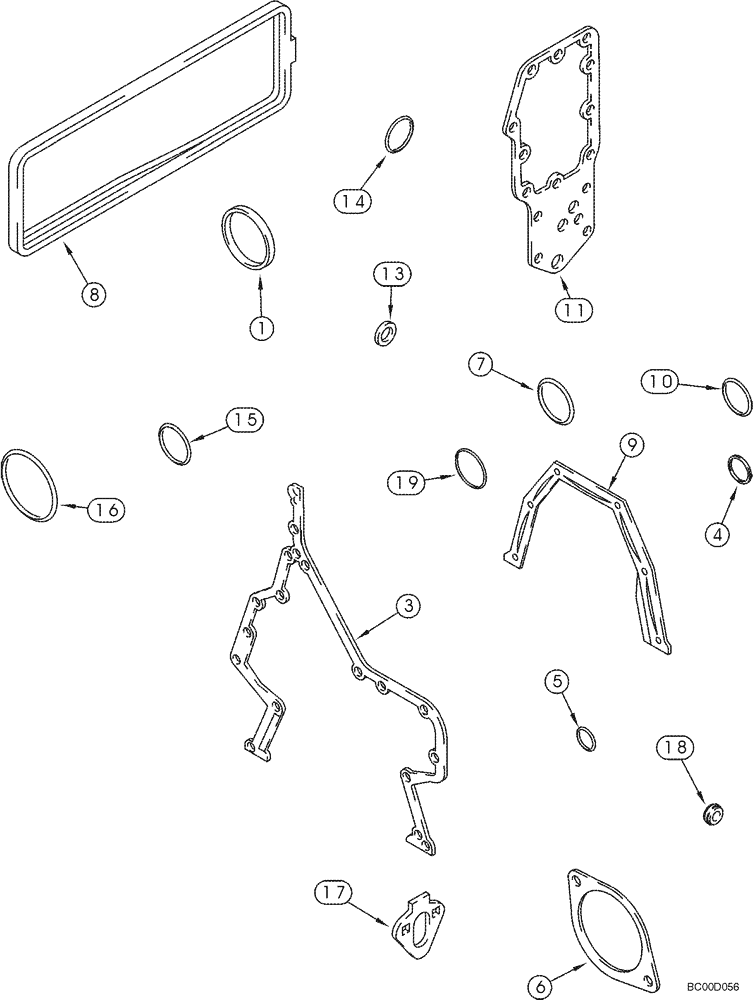

Схема запчастей Case IH 70XT - (02-28) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
14
17
11
3
16
6
10
9
1
7
5
19
18
15
4
8
13

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

A77965

SEAL PACKAGE

Cylinder Block; Incl. 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-12, Ref 18

1шт.

3

J938156

GASKET,0.79mm Thk

See Figure 02-12, Ref 4

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-12, Ref 9

1шт.

5

J913994

O-RING

See Figure 02-12, Ref 12

1шт.

6

J929751

GASKET

See Figure 02-12, Ref 14

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Not used in this application

1шт.

8

J283767

GASKET,7.4mm Thk

See Figure 02-22, Ref 22

1шт.

9

J938159

GASKET

See Figure 02-23, Ref 10

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-22, Ref 32

1шт.

11

J942914

GASKET

See Figure 02-16, Ref 13

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-17, Ref 12

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, Not Used In This Application

1шт.

15

J929457

O-RING

23/32 ID x 7/64, See Figure 02-16, Ref 6

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-24, Ref 2

1шт.

17

J939258

GASKET,1.21mm Thk

See Figure 03-08, Ref 4; Replaces J931059

1шт.

18

J928759

SEALING WASHER

See Figure 02-22, Ref 19

6шт.

19

J935032

SEAL

See Figure 03-10, Ref 37

1шт.

Выбрано товаров: 19
