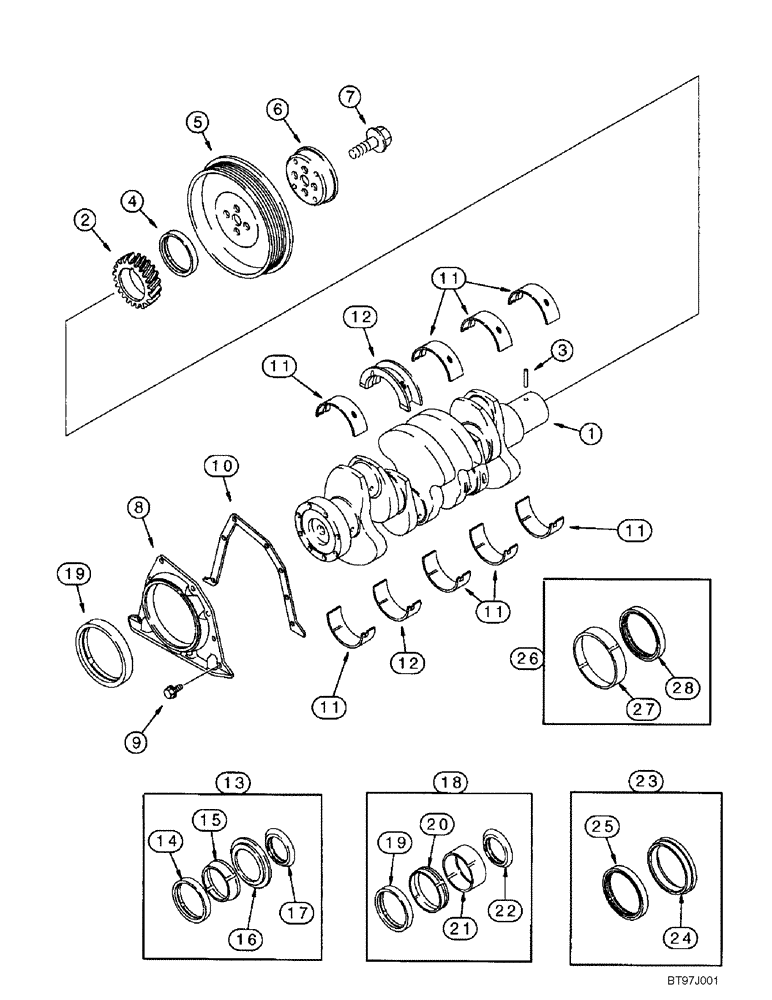

Запчасти Case IH 70XT (02-23) - CRANKSHAFT (02) - ENGINE

REF

INSTRUCTION

4-390/4T-390 Emissions Certified Engine

1шт.

JR908031

CRANKCASE

Remanufactured; North America Only

1шт.

J929036R

REMAN-CRANKSHAFT

60XT, 70XT, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

60XT, 70XT, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Order A77889; See Figure 02-23

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J938159

GASKET

1шт.

11

J804940

BEARING SET

4-390 Engine; Standard

4шт.

11

A77405

CRANKSHAFT BEARING

4T-390 Engine; Standard

4шт.

11

A77472

BEARING SET

0.25 mm; Undersize 0.25 mm

4шт.

11

A77474

BEARING SET

0.50 mm; Undersize 0.50 mm

4шт.

11

A77476

BEARING SET

0,75 mm; Undersize 0.75 mm

4шт.

11

A77478

BEARING SET

1.0 mm; Undersize 1.00 mm

4шт.

12

A77895

THRUST BEARING,KIT

4-390 Engine; Standard

1шт.

12

A77896

BEARING SET

4T-390 Engine; Standard

1шт.

12

A77473

THRUST BEARING

0.25 mm; Undersize 0.25 mm

1шт.

12

A77475

THRUST BEARING

0.50 mm; Undersize 0.50 mm

1шт.

12

A77477

THRUST BEARING

0.75 mm; Undersize 0.75 mm

1шт.

12

A77479

THRUST BEARING

1.0 mm; Undersize 1.00 mm

1шт.

12

A77841

THRUST BEARING

0.50 mm; Undersize 0.50 mm; Oversize 0.50 mm

1шт.

12

A77840

THRUST BEARING

1.0 mm; Undersize 1.00 mm; Oversize 1.00 mm

1шт.

13

A77889

SEAL PACKAGE

Crankshaft; Front; Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft; Front; Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Crankshaft; Rear; Incl. 24, 24A, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool; Not Illustrated

1шт.

25

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear; Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
