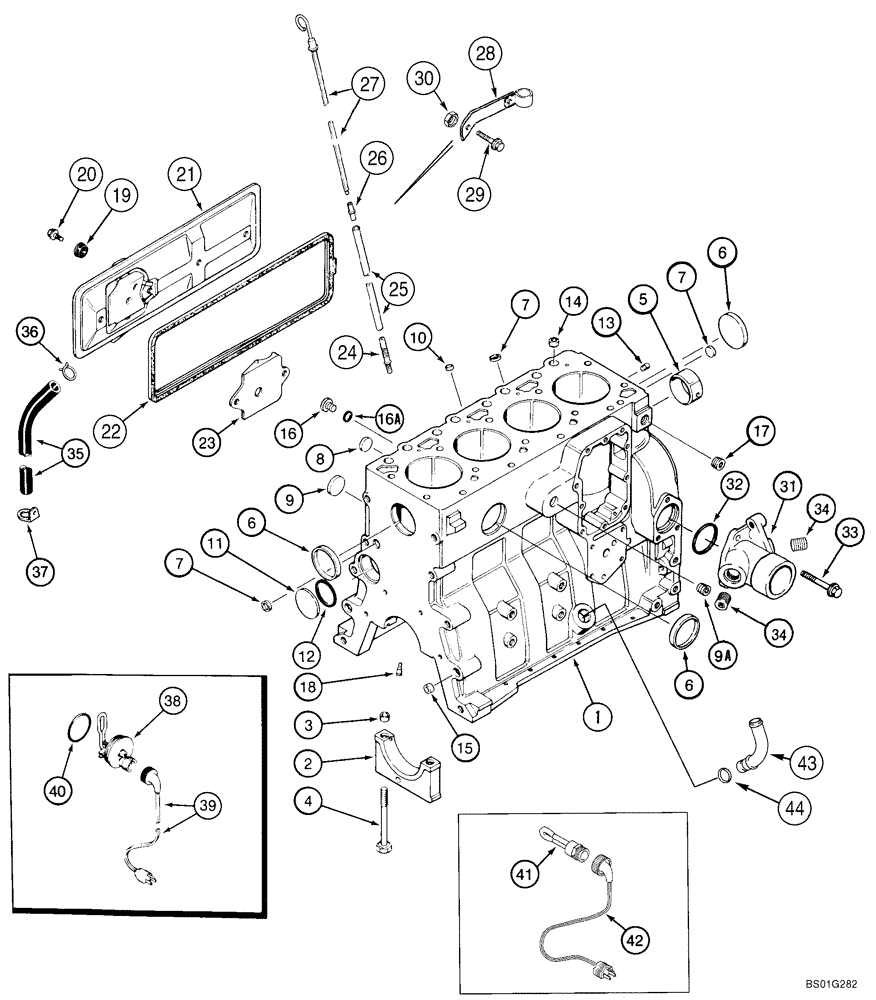

Запчасти Case IH 70XT (02-22) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

383714A1

Complete Engine, Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; Order 234277A2; North American Models

1шт.

394114A1

ENGINE ASSEMBLY

ENGINE ASSY Complete engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; Order 234277A2; European Models

1шт.

234277A2

BASIC ENGINE

Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

With Four Bolt Hole Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

Short; Incl. Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft and Bearings; Incl. 1 - 8

1шт.

J933648R

SHORT ENGINE

Remanufactured

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Stripped; Incl. 2 - 8

1шт.

2

J936791

BEARING CAP

Incl. 3

5шт.

3

J900068

BEARING WASHER

18 mm OD

2шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing; Front; See Figure 02-20

1шт.

6

A77782

PLUG

58 mm

3шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

1шт.

9a

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC Replaces A77505

1шт.

10

J900955

PLUG

10 mm OD; One Used In This Application

3шт.

10a

J905401

PLUG

Pressed In Oil Fill Hole Left Side; Not Illustrated

1шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD; Incl. 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm; One Used In This Application; Not Illustrated

3шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Two Used In This Application; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm, Not Used In This Application; Incl. 17B; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Not Used In This Application; Incl. 17D; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

18

J937214

NOZZLE CAP

4 Used In This Application

6шт.

19

J900267

SEAL

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

21

J936186

COVER

Incl. 23

1шт.

22

J283767

GASKET,7.4mm Thk

1шт.

23

J907586

BAFFLE

1шт.

24

A77645

TUBE

1шт.

25

J285703

TUBE,12 mm OD x 787.5 mm L

1шт.

25a

86637701

HOSE CLAMP,12.45mm - 12.95mm

1/2; Not Illustrated; Replaces 214-1308

2шт.

26

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

27

J907679

DIPSTICK

1шт.

28

J905803

BRACE

1шт.

29

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

J916625

CONNECTING BLOCK

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

34

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

Engine Block Heater

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 38 - 40; Install Ref. 38 In Place Of Ref. 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

39

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in.)

1шт.

40

J910517

O-RING

240 Volt

1шт.

124340A1

KIT

Engine Block Heater, 240V - 750W; Incl. 38 - 40; Install Ref. 38 In Place Of Ref. 6 Plug

1шт.

38

NSS

NOT SOLD SEPARAT

Element; Installs In Place Of Ref. 6 Plug

1шт.

39

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72 in.)

1шт.

40

J910517

O-RING

120 Volt

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 41, 42; Install Ref. 41 In Place Of Ref. 9A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 9A Plug

1шт.

42

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in.)

1шт.

309652A1

KIT

Engine Block Heater, 240V - 750W; Incl. 41, 42; Install Ref. 41 In Place Of Ref. 9A Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element; Installs In Place Of Ref. 9A Plug

1шт.

42

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72 in.)

1шт.

43

J931973

TUBE,0.875" OD

1шт.

44

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

A77887

PACKAGE,SERVICE

Engine Overhaul Kit; Incl. 47 - 54; Not Illustrated

1шт.

87425543

KIT

Engine Overhaul Kit; Incl. 47 - 54; Not Illustrated; Replaces A77887

1шт.

47

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure 02-25

4шт.

48

J934047

PIN,40mm OD x 82.68mm L

See Figure 02-25

4шт.

49

A77465

BEARING SET

See Figure 02-25

4шт.

50

A77405

CRANKSHAFT BEARING

See Figure 02-23

4шт.

51

A77896

BEARING SET

See Figure 02-23

1шт.

52

87405727

ENGINE GASKET KIT

See Figure 02-26; Replaces A77975

1шт.

52

87434406

GASKET

See Figure 02-26; Replaces 87405727

1шт.

53

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Figure 02-18

1шт.

54

A77673

GASKET KIT

See Figure 02-17

1шт.
