Запчасти Case IH 70XT (02-20) - CAMSHAFT (02) - ENGINE

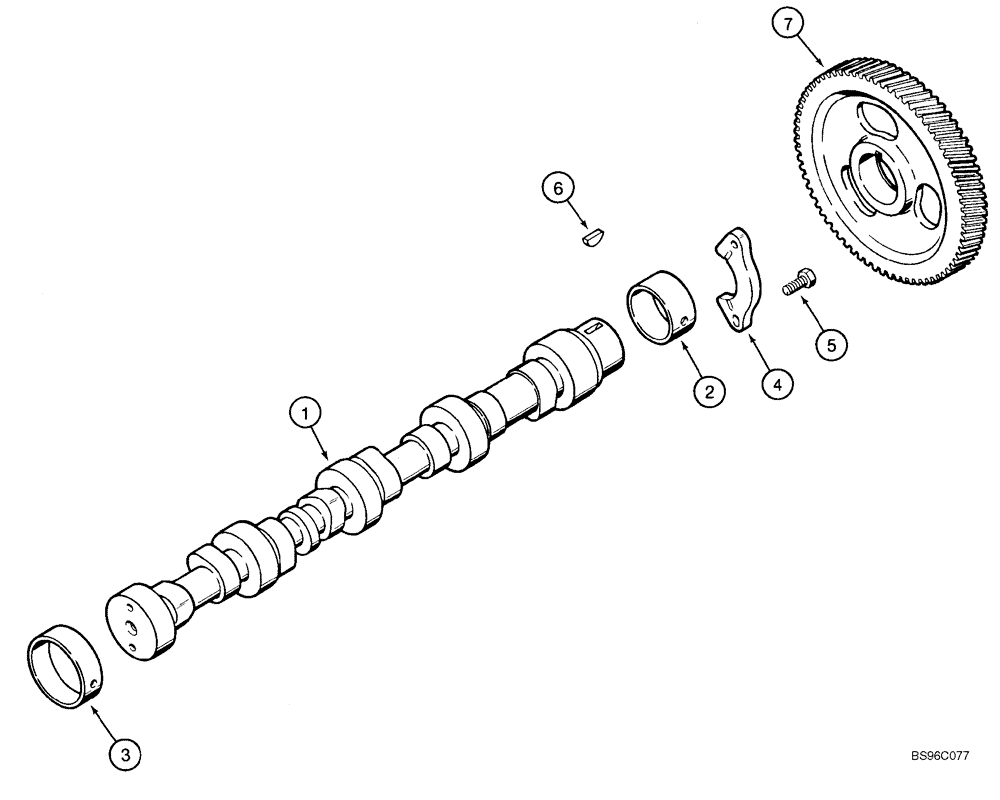

Схема запчастей Case IH 70XT - (02-20) - CAMSHAFT (02) - ENGINE
4
7
2
3
1
5
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4-390/4T-390 Emissions Certified Engine

1шт.

1

J929039

CAMSHAFT

4-390 Engine

1шт.

J929039R

REMAN-CAMSHAFT

60XT, 70XT, BOTH SKID STEER LOADER

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

1

J929885

CAMSHAFT

4T-390 Engine

1шт.

1

J929885R

REMAN-CAMSHAFT

60XT, 70XT, Both CASE SKID STEER LOADER, 4T-390 Engine

1шт.

1

J929885C

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

Front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

Intermediate and Rear; Service Repair Only

4шт.

4

J927155

SUPPORT

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

7

J929030

PINION

4-390 Engine; No Longer Available, Order J929028

1шт.

7

J929028

GEAR

4-390, 4T-390 Engine

1шт.

Выбрано товаров: 14
