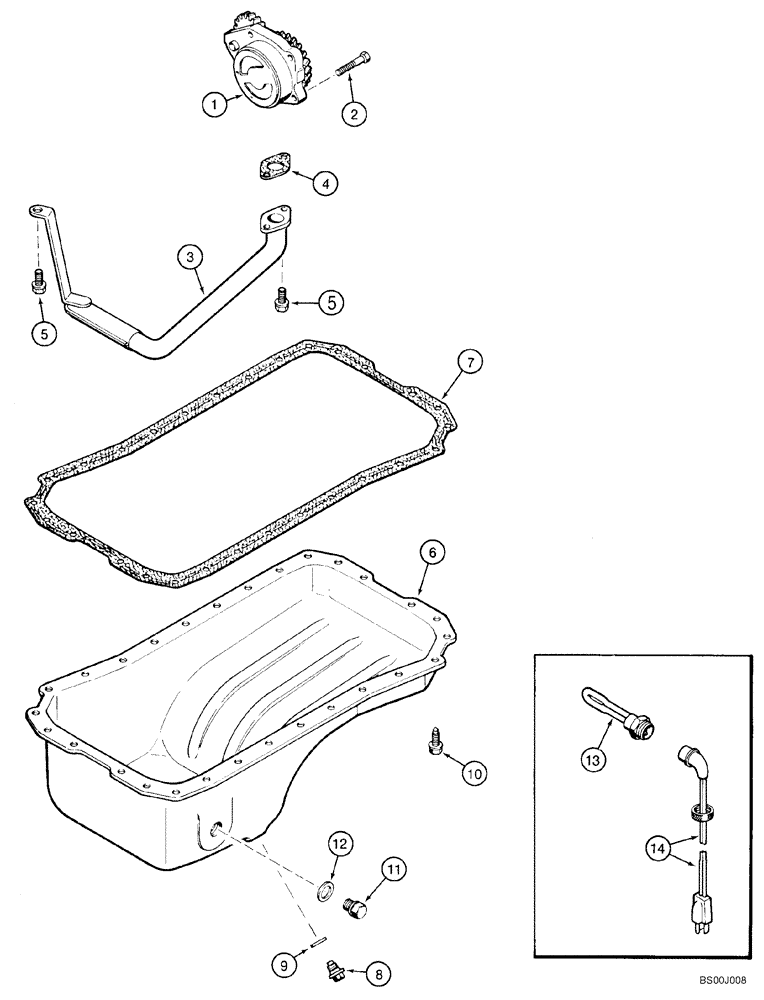

Запчасти Case IH 70XT (02-17) - OIL PUMP AND OIL PAN (02) - ENGINE

REF

INSTRUCTION

4-390/4T-390 Emissions Certified Engine

1шт.

1

J937027

PUMP, ENGINE OIL

4T-390 Engine

1шт.

1

JR937027

REMAN-ENG OIL PUMP

4T-390 Engine; Remanufactured Oil Pump

1шт.

1

JC937027

CORE-ENGINE OIL PUMP

Return number

1шт.

1

CASJ937028

PUMP, ENGINE OIL

4-390 Engine

1шт.

1

JR937028

REMAN-ENG OIL PUMP

60XT, 70XT

1шт.

1

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905206

TUBE,1" OD

1шт.

4

J938157

GASKET,1.2mm Thk

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket; Pan; Order A77673

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Incl. 4, 7. 9

1шт.

REF

INSTRUCTION

ENGINE OIL HEATER

1шт.

A77490

KIT

120V; Incl. 13, 14; Also Order J902425

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

REF

INSTRUCTION

ENGINE OIL HEATER, EUROPEAN MODELS

1шт.

15

J285916

HEATER

240V; Not Illustrated

1шт.

16

J905114

ELECTRIC CABLE

1829 mm (72 in.); Not Illustrated

1шт.
