(09-20) - SOUNDPROOFING (EUROPE, NORTH AMERICAN MODELS WITH HEATER)

Запчасти Case IH 70XT (09-20) - SOUNDPROOFING (EUROPE, NORTH AMERICAN MODELS WITH HEATER) (09) - CHASSIS

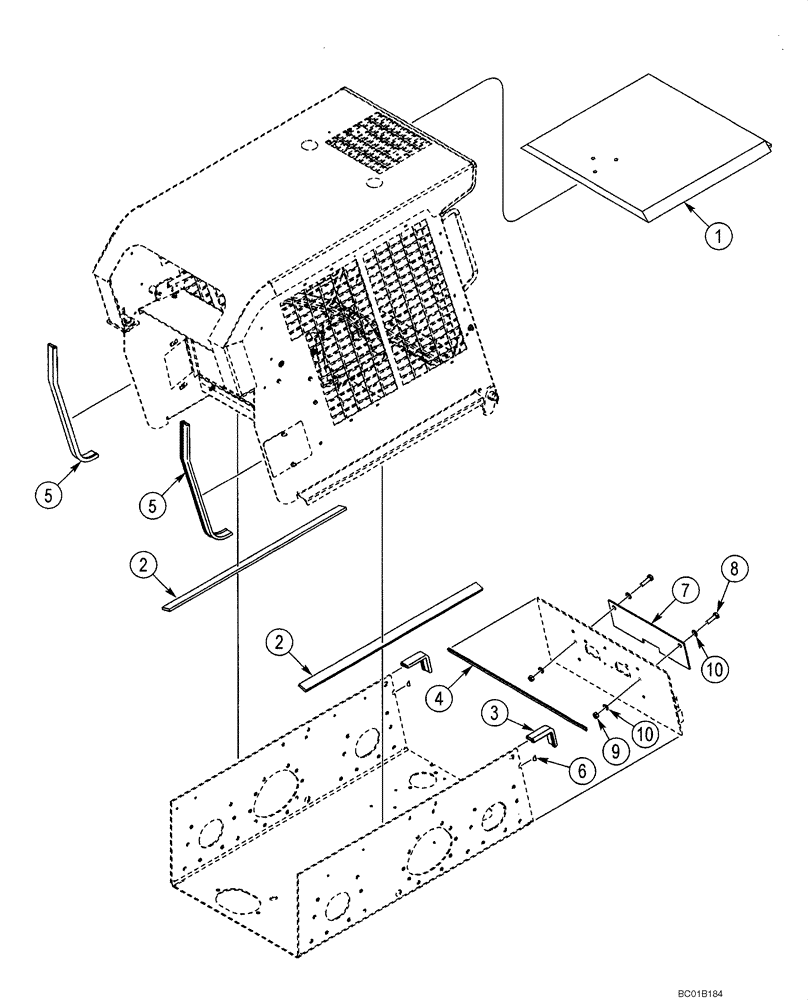

Схема запчастей Case IH 70XT - (09-20) - SOUNDPROOFING (EUROPE, NORTH AMERICAN MODELS WITH HEATER) (09) - CHASSIS
2
5
9
10
6
8
7
3
2
10
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

372117A4

PANEL

Headliner

1шт.

2

378353A1

WEATHERSTRIP,44.5mm W x 1070mm L x 11.1mm Thk

Side Screen

2шт.

3

381175A2

SEAL

Front Corner

2шт.

4

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

5

394745A2

SEAL,800mm L

ROPS Wing

2шт.

6

394748A1

INSULATION

Relief Cut

2шт.

7

395037A1

PLATE

Cover

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
