Запчасти Case IH 70XT (02-10) - WATER PUMP SYSTEM (02) - ENGINE

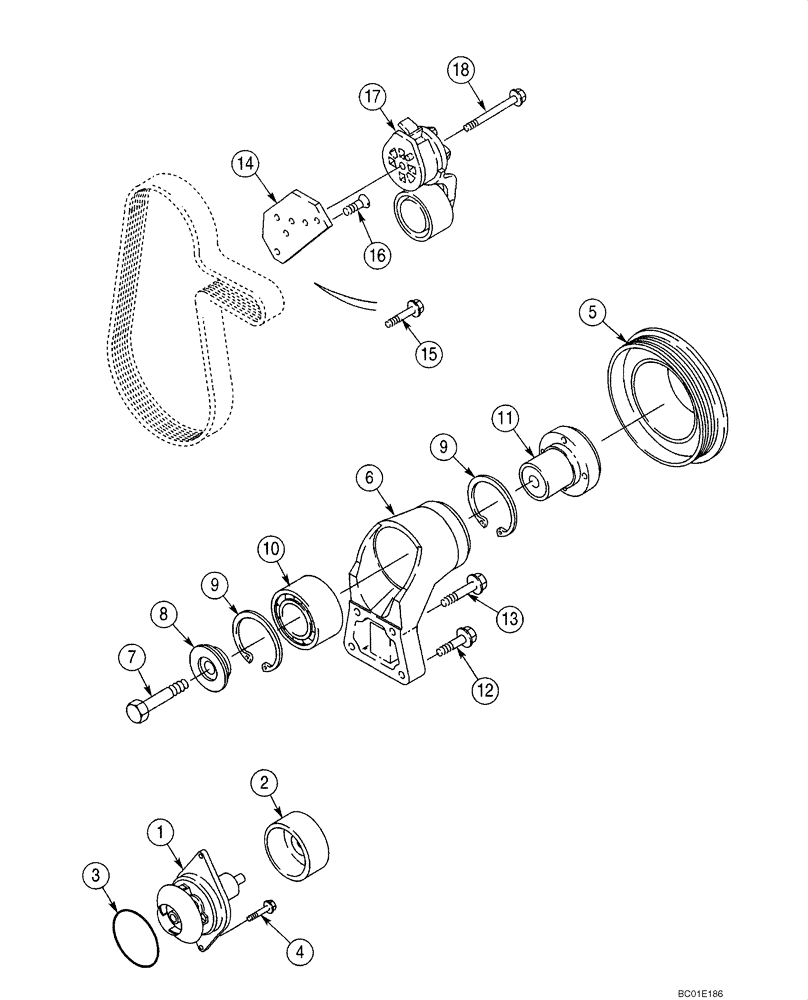

Схема запчастей Case IH 70XT - (02-10) - WATER PUMP SYSTEM (02) - ENGINE
13
9
17
11
6
2
7
8
4
16
5
15
18
14
1
12
9
10
3

Артикул

Название

Примечание

Количество

J286277

PUMP, WATER

Water Pump; Incl. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

60XT, 70XT

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pulley Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

North American Models

1шт.

5

87739401

PULLEY,207.26mm OD

European 60XT; Replaces J914461

1шт.

5

J929269

PULLEY

European 70XT

1шт.

6

87428288

BEARING HOUSING

Incl. 7 - 11; Replaces J911205

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

2шт.

13

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

J925195

SUPPORT

North American Models

1шт.

14

J925194

SUPPORT

European Models

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1-2шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

North American Models

1шт.

17

J936203

BELT TENSIONER

1шт.

18

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

Выбрано товаров: 24
