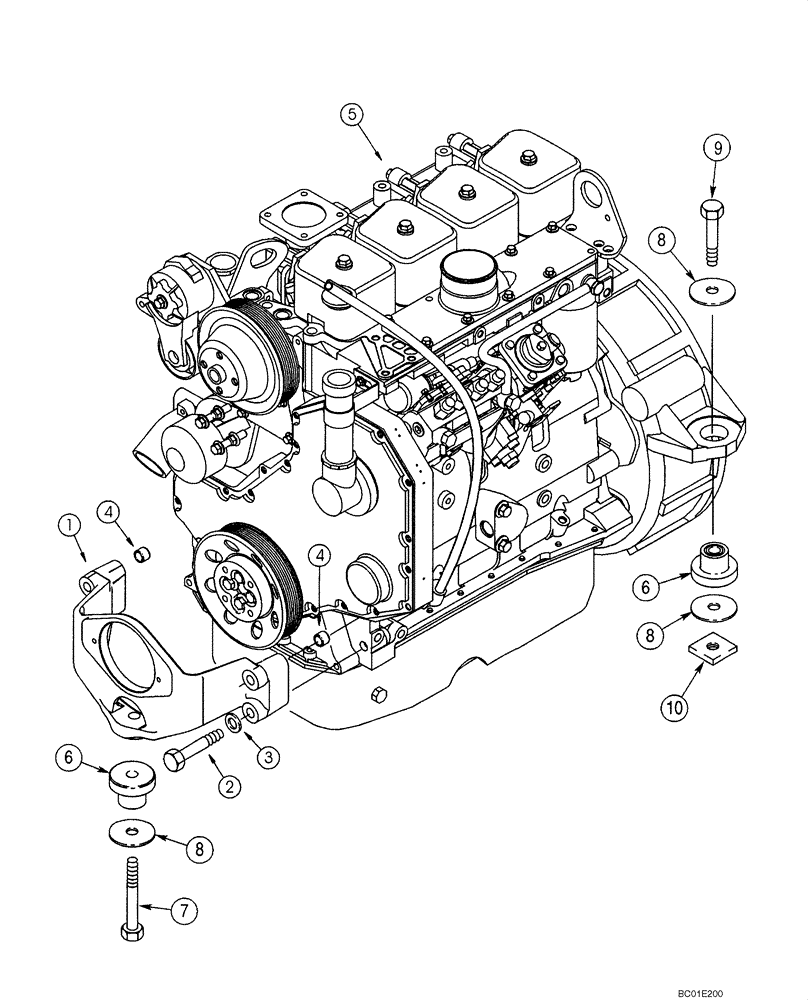

Запчасти Case IH 70XT (02-09) - ENGINE - MOUNTING (02) - ENGINE

1

247421A1

SUPPORT

1шт.

2

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

2шт.

5

REF

INSTRUCTION

Engine; See Figure 02-21

1шт.

6

A140221

MOUNTING PARTS

3шт.

7

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

1шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

5шт.

9

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

2шт.

10

390350A1

PLATE

17.5 x 30 x 4 mm

2шт.

REF

INSTRUCTION

Coupling, See Figure 06-06

1шт.
