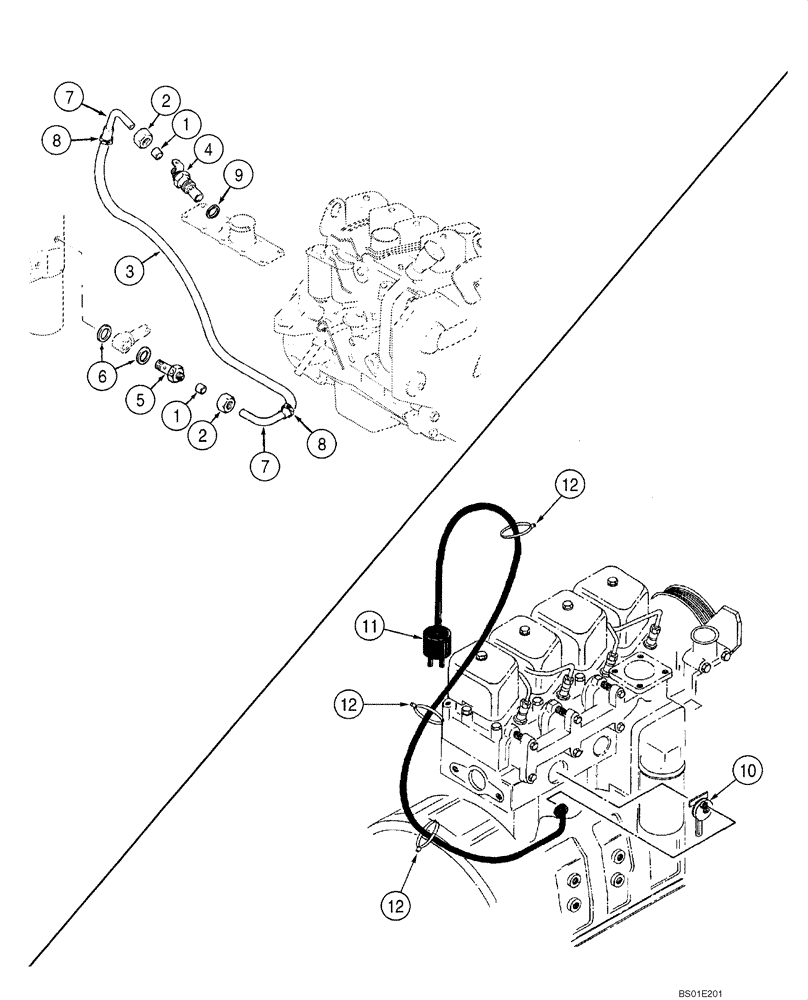

Запчасти Case IH 70XT (02-08) - COLD START - THERMOSTART (02) - ENGINE

1

A77613

SEAL

2шт.

2

114612A1

TUBE NUT

2шт.

3

119882A1

TUBE

230 mm (9-1/8 in.)

1шт.

4

A77616

GLOW PLUG

1шт.

5

A189226

BANJO BOLT

1шт.

6

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; Replaces J935171

2шт.

7

119881A1

TUBE,4.76 mm OD, 42, 42 mm Length

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

9

J906773

WASHER

1шт.

223838A1

CONTROL

Ether Start, See Figure 04-26

1шт.

REF

INSTRUCTION

COLD START AID; EUROPEAN MODELS

1шт.

10

J916662

UNIT HEATER

240V

1шт.

11

112837A1

PLUG

European, For NA Block Heaters, See Figure 02-21

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

3шт.
