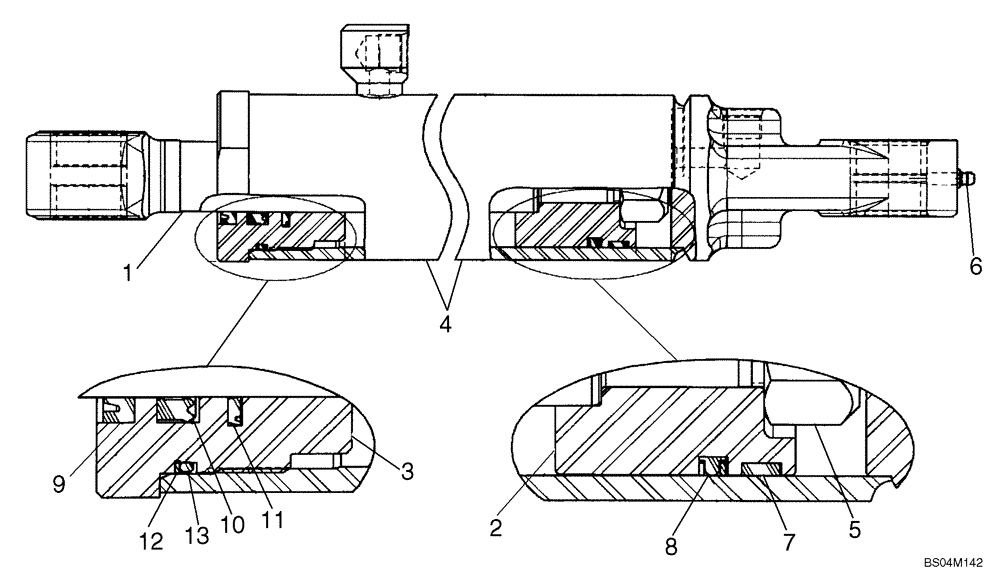

Запчасти Case IH 70XT (08-22B) - CYLINDER - TILT (08) - HYDRAULICS

87438193

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 370mm Stroke

Tilt; 3.0 Bore, 14.56 Stroke; Incl. 1 - 6 and Seal Kit 86614269 Ref 7 - 13

2шт.

87438193R

REMAN-HYD CYLINDER

60XT, 70XT

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.

1

87442326

ROD ASSY.,38.1mm OD x 580.64mm L

38.1 Dia, 31.8 Pin; Incl Bushings 30634

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

Bushing, 38.1mm OD X 32mm ID X 17.60mm Wide

2шт.

2

87442334

PISTON

1шт.

3

86614267

HEAD (CYLINDER)

2.5 x 1.38

1шт.

4

87442335

CYLINDER,76.2mm Bore Dia

Incl. Bushings, 86624450

1шт.

86624450

BUSHING

2шт.

5

87027430

NUT,1 1/8"-12, GC

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

86614269

SEAL KIT

Seal, 3.0 x 1.50; Incl. 7 - 13

1шт.

7

771714

RING

1шт.

8

86595542

SEAL

Seal, 3.0 Piston

1шт.

9

86631610

WIPER SEAL,36.32mm ID x 50.95mm OD x 7.92mm Thk

1.50 Wiper

1шт.

10

86631607

SEAL,37.08mm ID x 52.58mm OD x 9.53mm Thk

1.50 Rod

1шт.

11

86631616

SEAL,37.85mm ID x 55.12mm OD x 3.12mm Thk

1.38 Buffer

1шт.

12

86609324

SEALING WASHER

SEAL WASHER

1шт.

13

270192

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.
