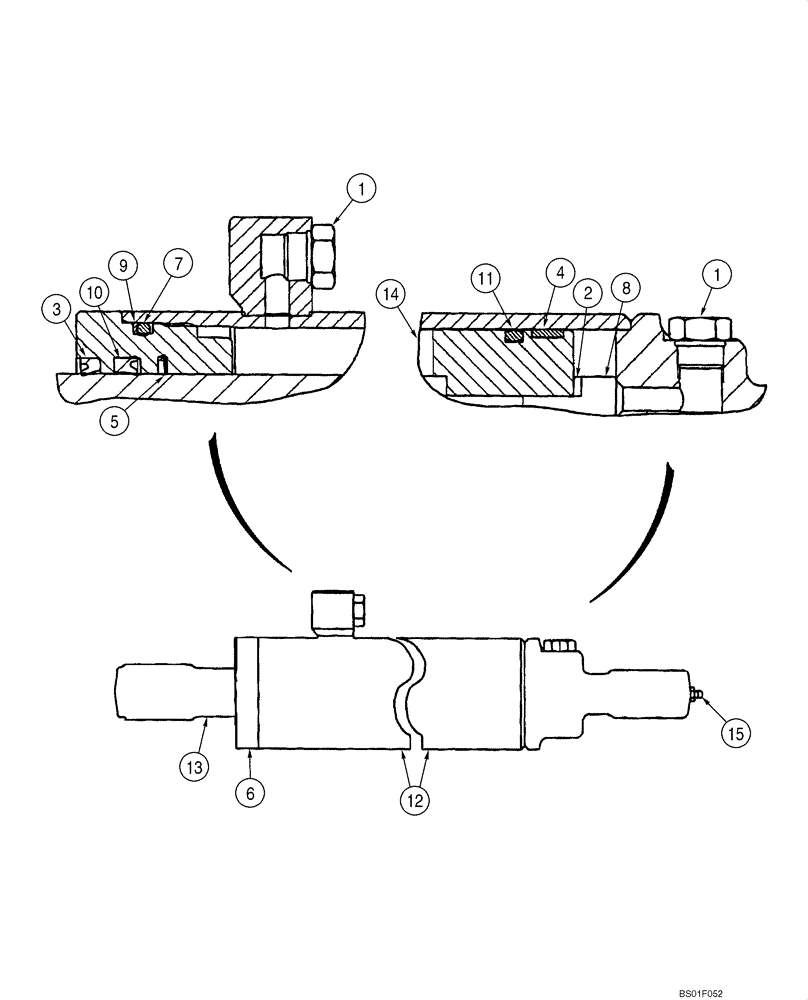

Запчасти Case IH 70XT (08-22) - CYLINDER - LOADER BUCKET, 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854 (08) - HYDRAULICS

86614639

CYLINDER ASSY.

3 x 14-7/8; 70XT(NA) BSN JAF0371243, 70XT(EU) BSN JAF0351854

2шт.

87438193R

REMAN-HYD CYLINDER

70XT BSN JAF0371243, Reman for new P/N 86614639

2шт.

87438193C

Return Number

CORE-HYD CYLINDER

1шт.

1

214389

PLUG,3/4" - 16 ORB

Includes Ref. 1A

2шт.

1a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" OD, Not Illustrated Separately

1шт.

2

694377

WASHER

1шт.

3

86631610

WIPER SEAL,36.32mm ID x 50.95mm OD x 7.92mm Thk

1шт.

4

771714

RING

1шт.

5

86631616

SEAL,37.85mm ID x 55.12mm OD x 3.12mm Thk

1шт.

6

86614267

HEAD (CYLINDER)

1шт.

7

270192

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.

8

328-1456

BOLT,Hex, 7/8" - 14 x 3-1/2", Gr 8

1шт.

9

86609324

SEALING WASHER

SEAL WASHER

1шт.

10

86631607

SEAL,37.08mm ID x 52.58mm OD x 9.53mm Thk

1шт.

11

86595542

SEAL

1шт.

12

86614262

CYLINDER

Incl. 12A

1шт.

12a

86624450

BUSHING

2шт.

13

86622509

ROD

1шт.

14

86614268

PISTON

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

86614269

SEAL KIT

Seal; Incl. 3 - 5, 7, 9 - 11

1шт.
