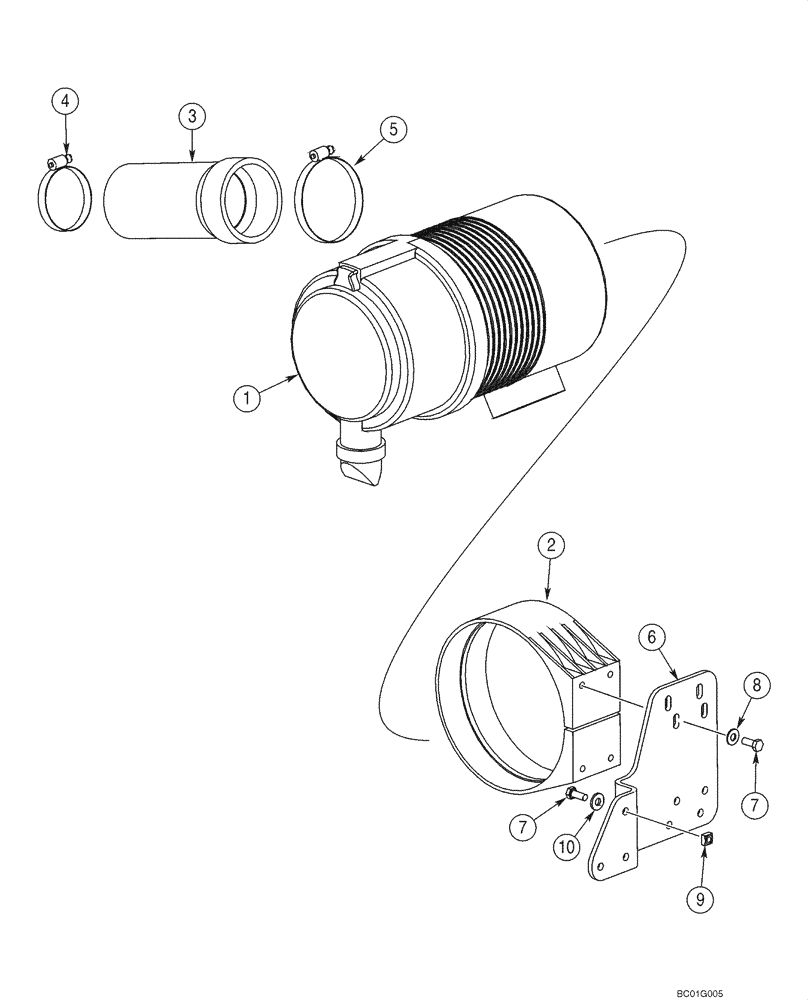

Запчасти Case IH 70XT (02-06) - AIR CLEANER - ENGINE, 70XT (02) - ENGINE

1

382072A1

AIR FILTER

Used On 70XT; Incl. 1A - 1F; Component Parts Not Illustrated Separately

1шт.

1a

NSS

NOT SOLD SEPARAT

Body, Air Cleaner

1шт.

1b

222421A1

AIR FILTER

Primary

1шт.

1c

222422A1

AIR FILTER

ELEMENT, FILTER Secondary

1шт.

1d

395792A1

COVER ASSY

1шт.

1e

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

1f

86990981

LOCKING TAB

1шт.

2

383964A1

CLAMP

1шт.

3

384191A1

INTAKE AIR HOSE,76.00 mm ID, 90.00 mm ID x 213.00 mm, SAE J200, SAE J20R4

1шт.

4

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in. dia

1шт.

5

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

4-1/16 - 5; If Used

1шт.

5

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

3-5/16 - 4-27/64; Replaces 214-1472

1шт.

6

384722A2

BRACKET

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

7шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

9

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

3шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

3шт.
