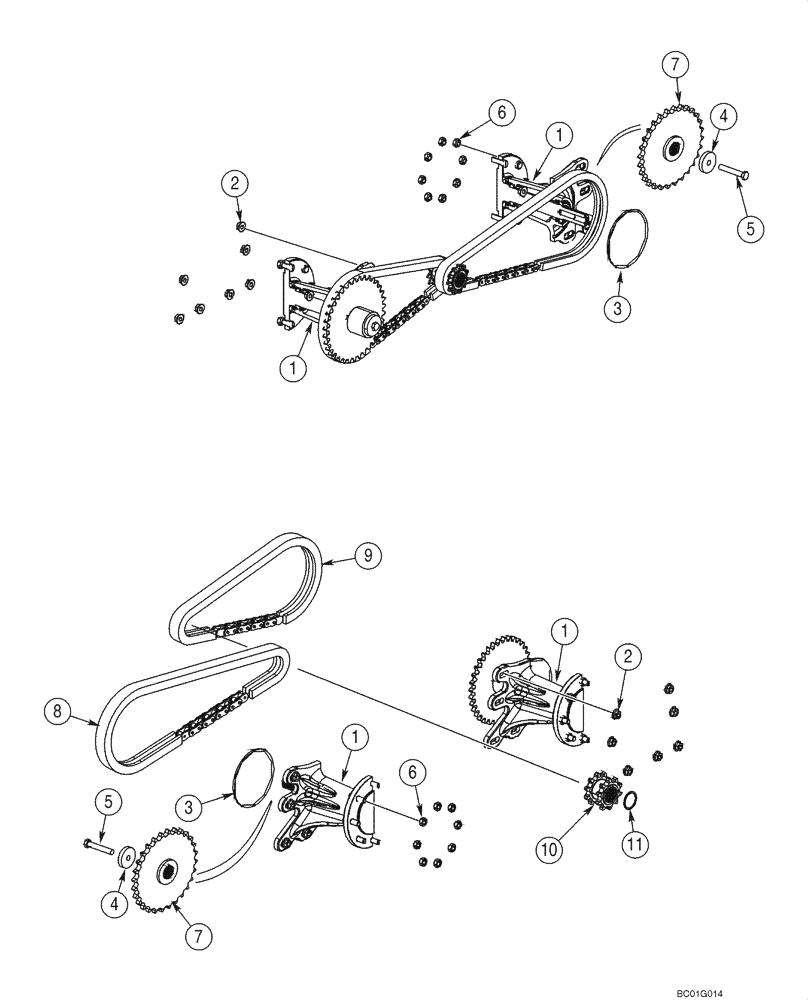

Запчасти Case IH 70XT (06-24) - DRIVE LINE (EUROPE) (06) - POWER TRAIN

REF

INSTRUCTION

European Models

1шт.

1

REF

INSTRUCTION

Axle Assy; See Figure 06-19

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

Replaces 827-16100

4шт.

6

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

32шт.

7

228141A2

SPROCKET ASSY.

28T

4шт.

8

47429588

CHAIN,#100, 60 Links x 31.75mm = 1905mm

100/60P

2шт.

9

392871A1

CHAIN (CE)

100/48P

2шт.

10

396621A1

SPROCKET ASSY.

10T

2шт.

11

410963A1

RETAINER

2шт.
