(04-31) - ENGINE - SHUTDOWN, AUTOMATIC (NORTH AMERICA)

Запчасти Case IH 60XT (04-31) - ENGINE - SHUTDOWN, AUTOMATIC (NORTH AMERICA) (04) - ELECTRICAL SYSTEMS

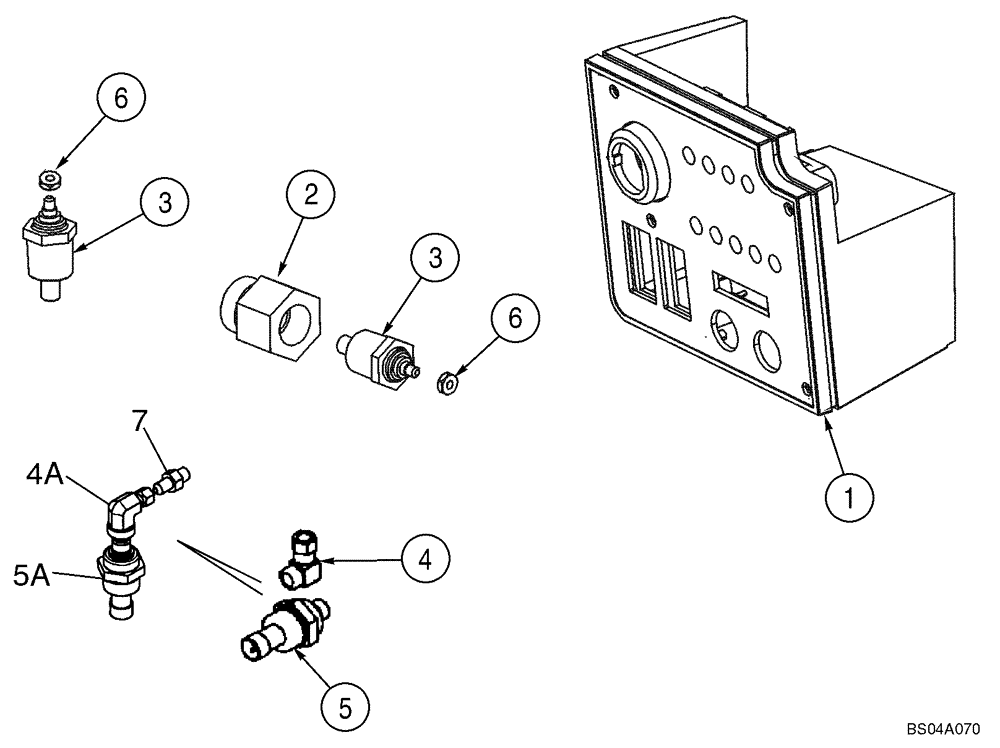

Схема запчастей Case IH 60XT - (04-31) - ENGINE - SHUTDOWN, AUTOMATIC (NORTH AMERICA) (04) - ELECTRICAL SYSTEMS
3
6
6
2
1
3
5a
5
4a
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand Deluxe; See Figure 04-08, Ref. 11

1шт.

2

218-5424

FITTING

1-1/16 or x 1/2 fem PT

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine and Transmission Oil Temperature

2шт.

4

357762A1

ELBOW

1шт.

4a

87417547

90 ELBOW

Replaces 357762A1

1шт.

5

426036A1

SENSOR

Engine Oil Pressure

1шт.

5a

405439A1

PRESSURE SWITCH

Engine Oil; Replaces 426036A1

1шт.

6

225-14210

NUT,#10-32

2шт.
