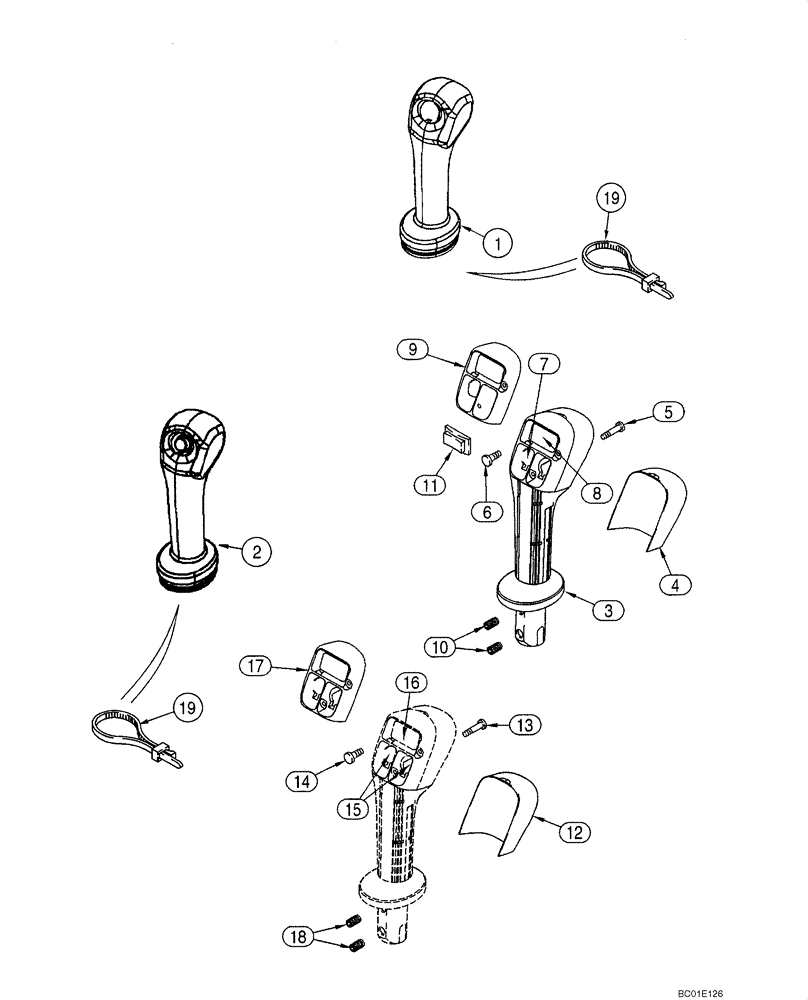

Запчасти Case IH 60XT (04-23) - CONTROLS, RIGHT HAND - HANDLE (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NO SWITCHES

1шт.

1

369957A1

GRIP

North America Only; No Switches; Component Parts Not Serviced Separately

1шт.

REF

INSTRUCTION

SINGLE SWITCH

1шт.

2

369959A1

GRIP

Right Hand; Single Switch; Horn; Component Parts Not Serviced Separately

1шт.

REF

INSTRUCTION

TWO SWITCH

1шт.

379500A1

HANDLE

Right Hand; Two Switch; Incl. 3 - 11; For Decals; See Figure 09-59

1шт.

3

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

4

291793A1

CAP

1шт.

5

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

6

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

7

303891A1

SWITCH

Horn

1шт.

8

291802A1

SWITCH

Turn Signal Or Auxiliary Electric

1шт.

9

291798A2

PLASTIC PLATE

1шт.

10

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

11

303893A1

BOOT

Rocker Switch

1шт.

REF

INSTRUCTION

THREE SWITCH

1шт.

379501A1

HANDLE

Right Hand; Three Switch; Incl. 12 - 18; For Decals; See Figure 09-59

1шт.

12

291793A1

CAP

1шт.

13

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8

1шт.

14

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8

3шт.

15

303891A1

SWITCH

Horn

2шт.

16

291802A1

SWITCH

Turn Signal

1шт.

17

291797A2

PLASTIC PLATE

1шт.

18

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

2шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

1шт.

REF

INSTRUCTION

Lever; Control; See Figure 09-13

1шт.
