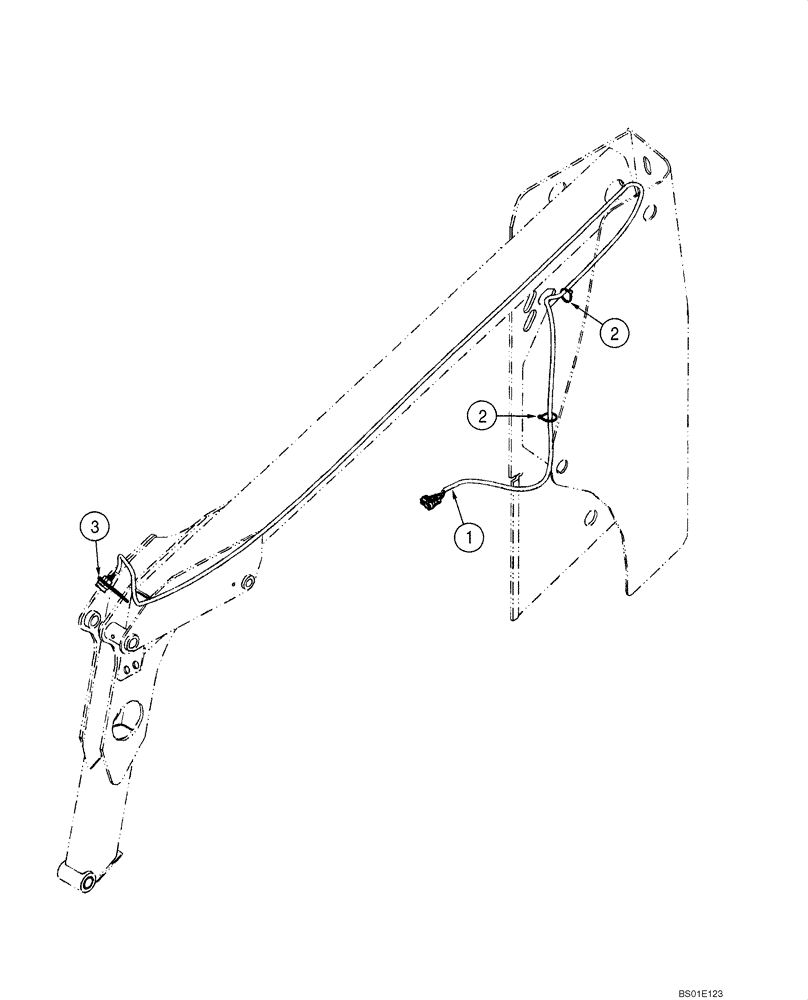

Запчасти Case IH 60XT (04-19) - ELECTRIC, AUXILIARY - FRONT (04) - ELECTRICAL SYSTEMS

369349A1

SERVICE KIT

Front Auxiliary Harness, Includes: Installation Instructions

1шт.

1

426764A1

HARNESS

Front Auxiliary Electric; See Figure 04-09

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

2шт.

3

406942A1

BAR

1шт.

223837A1

SWITCH

Auxiliary Control; See Figure 04-11

2шт.

A149800

FUSE,10 Amp

10 amp; See Figure 04-14

1шт.

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

3шт.
