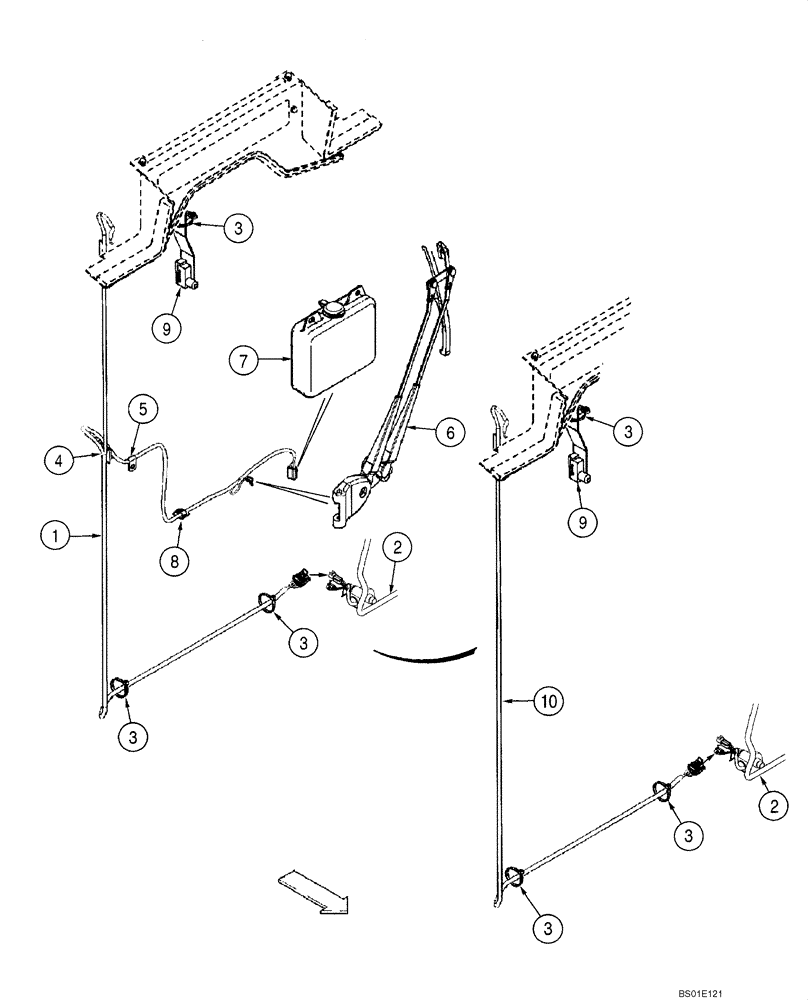

Запчасти Case IH 60XT (04-17) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS

1

398298A2

HARNESS

Front Door; Models With Glass Front Door; See Figure 09-30

1шт.

2

373664A5

HARNESS

Cab; See Figure 04-08

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

3шт.

4

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

1шт.

5

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

6

398129A2

KIT

Wiper; See Figure 04-22

1шт.

7

322651A1

RESERVOIR ASSY.

Components Not Serviced Separately

1шт.

8

H439303

CLIP

1шт.

9

392269A2

SWITCH

Seat

1шт.

10

398374A2

HARNESS

Door Switch; Models With Lexan Front Door; See Figure 09-31

1шт.
