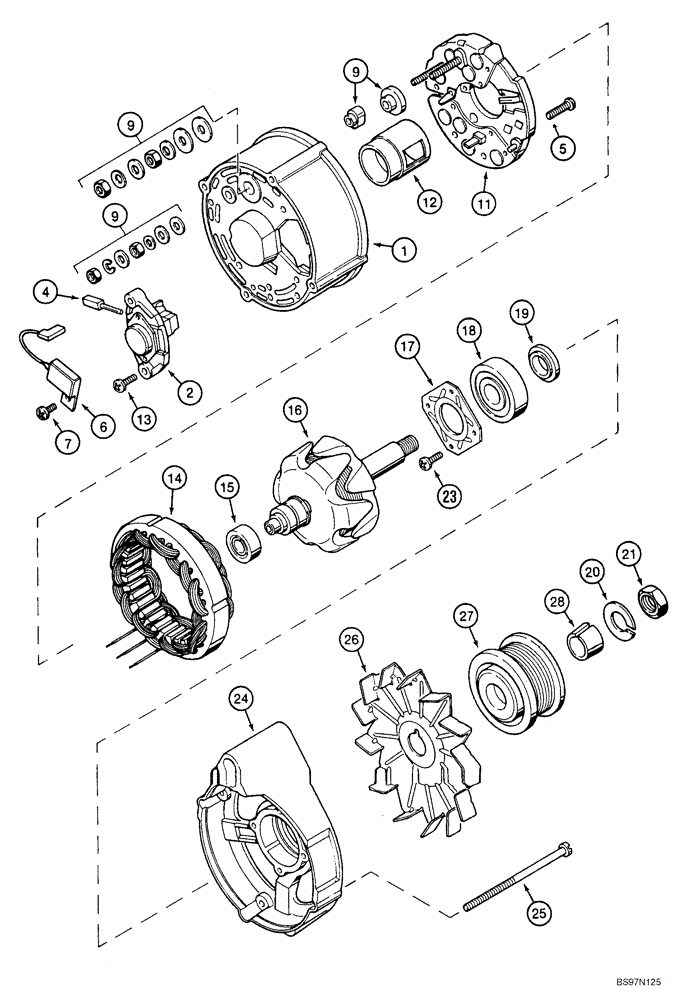

Запчасти Case IH 60XT (04-02) - ALTERNATOR ASSY (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; Incl. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

1

A187903

COVER

Housing

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set of 2

1шт.

5

A186194

SCREW,M4 x 18mm

2шт.

6

3079134R1

CAPACITOR

1шт.

7

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

1шт.

9

A187904

MULTIPOLE CONNECTOR

Terminal Connecting Parts

1шт.

11

360330A1

RECTIFIER

1шт.

12

A187899

INNER SHIELD

Shield

1шт.

13

A187504

SCREW

2шт.

14

A187995

STATOR

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

Small; Inner

1шт.

16

1987499C1

ROTOR

1шт.

17

A187901

FIXING PLATE

Plate

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Large; Outer

1шт.

3078897R1

SET OF PARTS

Retainer; Incl. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key; Not Used In A187873 Alternator; Not Illustrated

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A187994

HOUSING

Housing; Drive End

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Order Separately

1шт.

27

J908560

PULLEY

Order Separately

1шт.

28

J908563

RETAINER

Order Separately

1шт.
