Запчасти Case IH 60XT (02-29) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

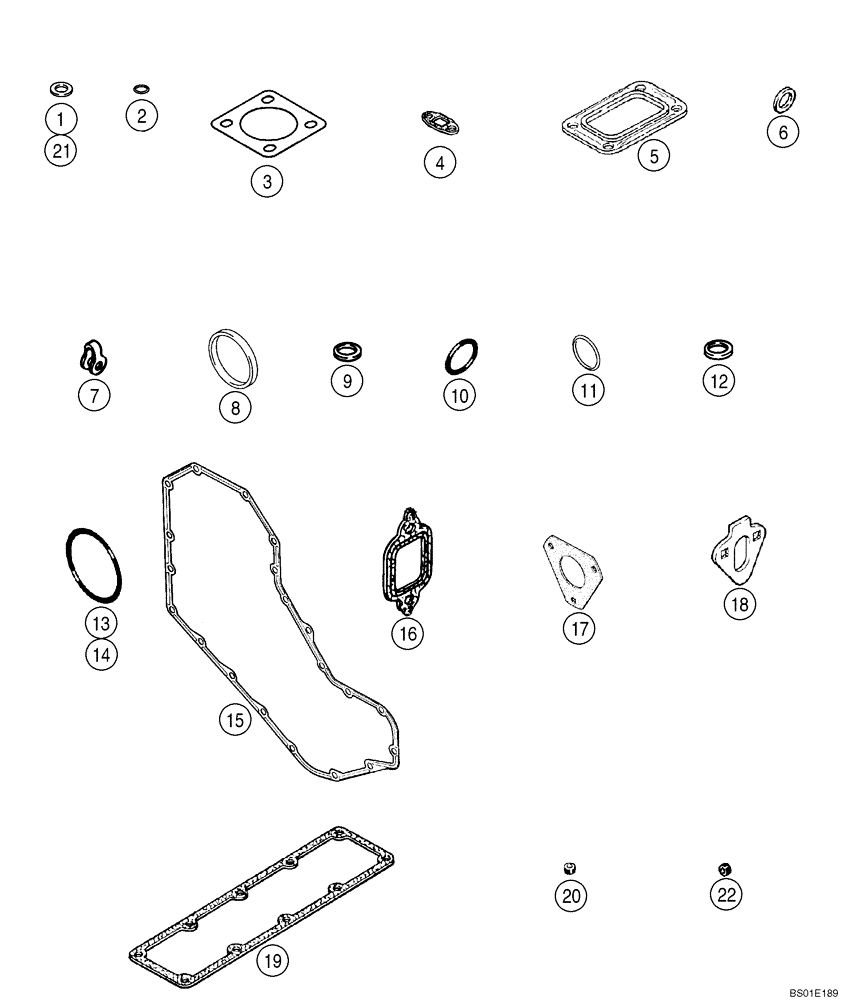

Схема запчастей Case IH 60XT - (02-29) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
12
5
16
4
19
1
21
10
17
6
18
20
8
13
22
2
7
3
9
15
11
14

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

A77993

GASKET KIT

Basic Service Engine; Incl. 1 - 21

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

See Figure 02-14, Ref 16

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 02-14, Ref 15; Figure 02-16, Ref 15

2шт.

3

J912220

GASKET,0.4mm Thk

See Figure 02-03, Ref 10

1шт.

4

J937706

GASKET,0.79mm Thk

See Figure 02-14, Ref 10

2шт.

5

J919369

GASKET,0.5mm Thk

See Figure 02-14, Ref 5

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-17, Ref 12

1шт.

7

J903380

SEAL

See Figure 03-06, Ref 7

4шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-12, Ref 18

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm, See Figure 03-06, Ref 10; Figure 03-11, Ref 3; Replaces J906659

4шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, Not Used In This Application

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-22, Ref 32

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-11, Ref 2

4шт.

13

J910517

O-RING

See Figure 02-22, Ref 40

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-24, Ref 2

1шт.

15

J914385

GASKET,1.02mm Thk

Not Used In This Application

1шт.

16

J927154

GASKET,0.38mm Thk

See Figure 02-13, Ref 10

4шт.

17

87413428

GASKET,1.2mm Thk

Not Used In This Application; Replaces J931607

1шт.

18

J939258

GASKET,1.21mm Thk

See Figure 03-08, Ref 4; Replaces J931059

1шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-13, Ref 15

1шт.

20

222-101

SLEEVE,3/16" Tube

Not Used in this Application

3шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm, See Figure 03-08, Ref 8; Replaces J935171

4шт.

22

222-103

SLEEVE,5/16" Tube

Not Used In This Application

4шт.
