(09-46) - BACKHOE - BUCKETS (D100)

Запчасти Case IH 60XT (09-46) - BACKHOE - BUCKETS (D100) (09) - CHASSIS

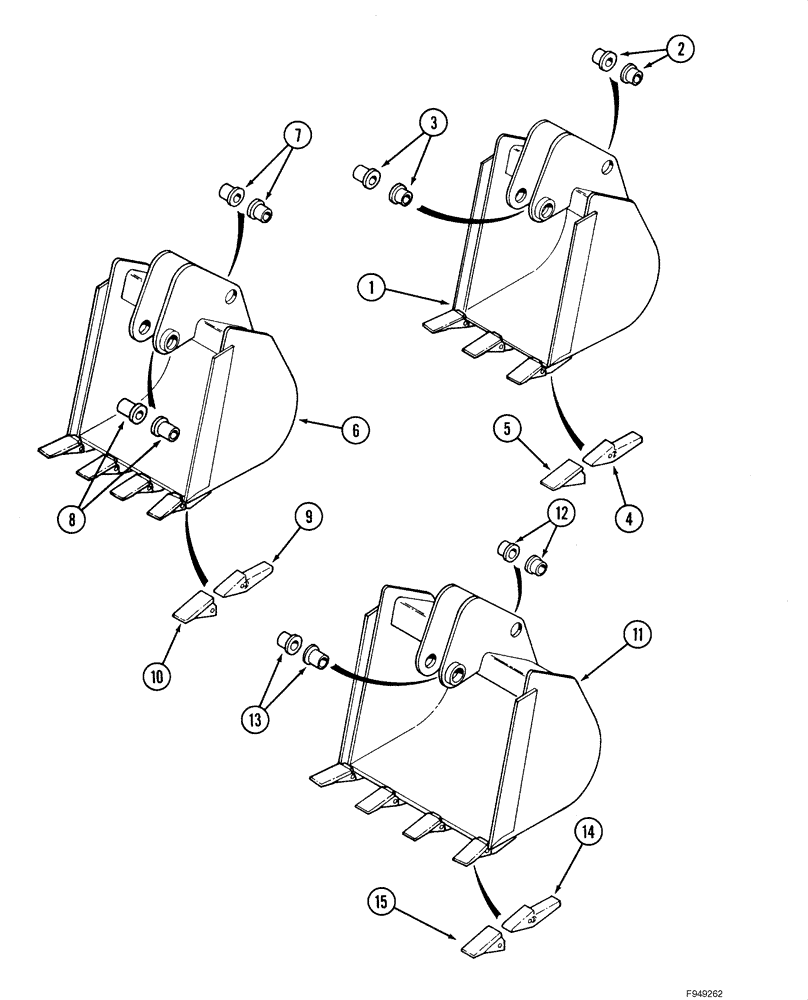

Схема запчастей Case IH 60XT - (09-46) - BACKHOE - BUCKETS (D100) (09) - CHASSIS
9
8
2
14
13
11
6
7
5
1
15
12
10
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

134114A1

BUCKET

Bucket, 13-1/2 in (344 mm); Standard; Order From Machinery Price List; Incl. 2 - 5

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H36657

TOOTH

3шт.

5

T41166

TOOTH

3шт.

6

134115A1

BUCKET

18 in (458 mm); Standard; Order From Machinery Price List; Incl. 7 - 10

1шт.

7

H50823

BUSHING

Cylinder Pin

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

9

H36657

TOOTH

4шт.

10

T41166

TOOTH

4шт.

11

134116A1

BUCKET

Bucket, 24 in (610 mm); Standard; Order From Machinery Price List; Incl. 11 - 15

1шт.

12

H50823

BUSHING

Cylinder Pin

2шт.

13

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

14

H36657

TOOTH

4шт.

15

T41166

TOOTH

4шт.
