Запчасти Case IH 60XT (09-45) - BACKHOE - BUCKETS (D100) (09) - CHASSIS

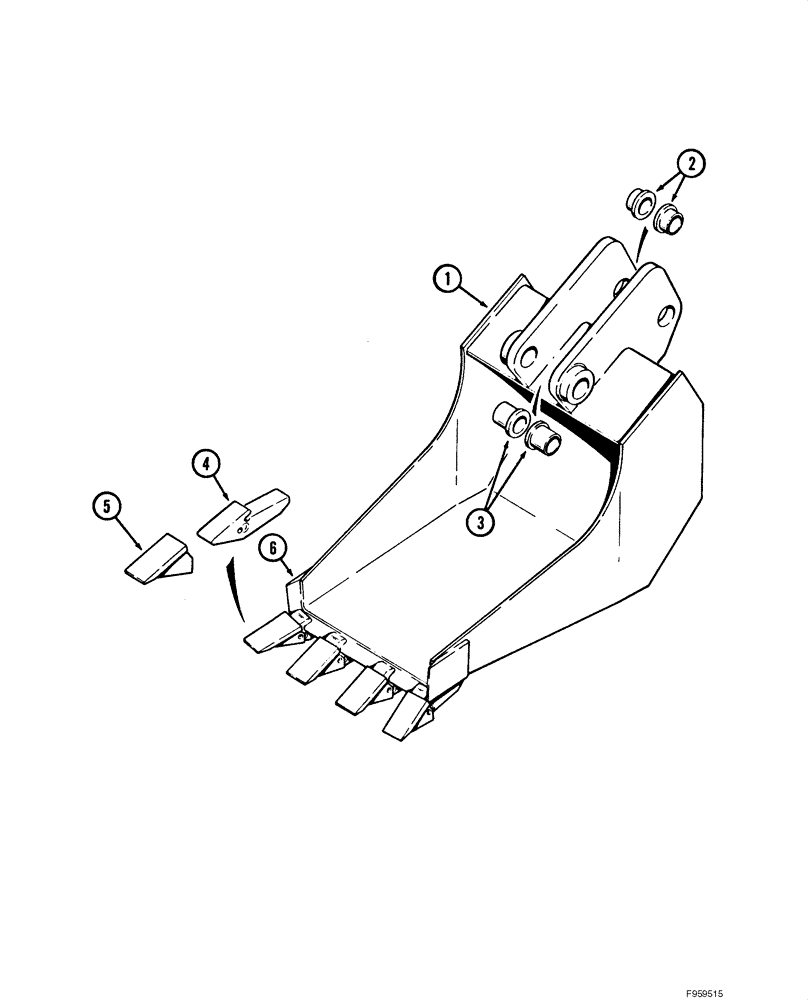

Схема запчастей Case IH 60XT - (09-45) - BACKHOE - BUCKETS (D100) (09) - CHASSIS
5
4
2
3
6
1

Артикул

Название

Примечание

Количество

1

H905109

Bucket, 12 in (305 mm); Bellhole; Order From Machinery Price List; Incl. 2 - 6

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H61283

TOOTH

4шт.

5

T41166

TOOTH

4шт.

6

H61424

HALF BLADE

18 in (458 mm); Bucket

1шт.

1

H905117

Bucket, 18 in (457 mm); Bellhole; Order From Machinery Price List; Incl. 2 - 6; Not Illustrated

1шт.

2

H50823

BUSHING

Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

Bucket Pivot

2шт.

4

H61283

TOOTH

4шт.

5

T41166

TOOTH

4шт.

6

H61432

HALF BLADE

18 in (457 mm); Bucket

1шт.

Выбрано товаров: 12
