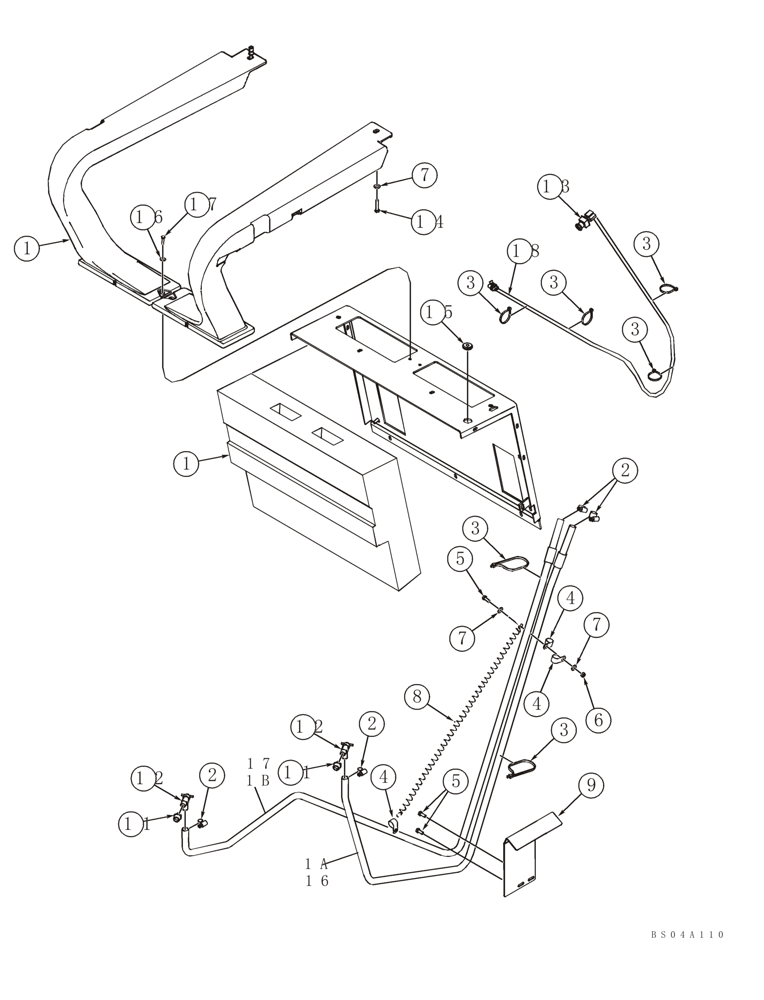

Запчасти Case IH 60XT (09-36) - HEATING SYSTEM - HEATER, DELUXE (09) - CHASSIS

1

381426A5

Deluxe; Machinery Item; Component Parts Not Illustrated Separately; Incl. 1A - 1I; Seals Used With Heater, See Figure 09-20

1шт.

1a

445925A1

HEATER HOSE,15.88 mm ID x 2154.00 mm

Supply

1шт.

1b

436908A1

HEATER HOSE,15.88 mm ID x 2850.00 mm

Return

1шт.

1c

436909A1

NUT

M8 x 1.25

2шт.

1d

436911A1

GASKET

Duct

2шт.

1e

436912A1

DUCT

Right Hand

1шт.

1f

436913A1

DUCT

Left Hand

1шт.

1g

436914A1

GRILLE

Fresh Air

1шт.

1h

436915A1

GRILLE

Rectangular

6шт.

1i

436916A1

HEATER

R18; Incl. 87048090 Harness, 87048089 Resistor, 87048091 Coil, 87048092 Filter, 87048093 Blower

1шт.

87048090

HARNESS

Not Illustrated

1шт.

87048089

RESISTOR

Not Illustrated

1шт.

87048091

COIL

Not Illustrated

1шт.

87048092

FILTER

Not Illustrated

1шт.

87048093

BLOWER ASSY.

Not Illustrated

1шт.

317726A1

FILTER

1шт.

2

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

4

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2-3шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Extension

1шт.

9

412434A2

SUPPORT

Throttle Guard

1шт.

10

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 x 3/8; Reducer Pipe

2шт.

11

301803R1

SHUT-OFF VALVE

2шт.

12

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

13

248-1370

GROMMET

Grommet

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

16

444772A1

SLEEVE

Heater Hose, Supply

1шт.

17

444775A1

SLEEVE

Heater Hose, Return

1шт.

396940A1

HARNESS

Deluxe Heater; See Figure 04-16

1шт.

392235A4

PANEL ASSY.

Shield, Heat; See Figure 09-29

1шт.

A149804

FUSE

30 amp; See Figure 04-13

1шт.
