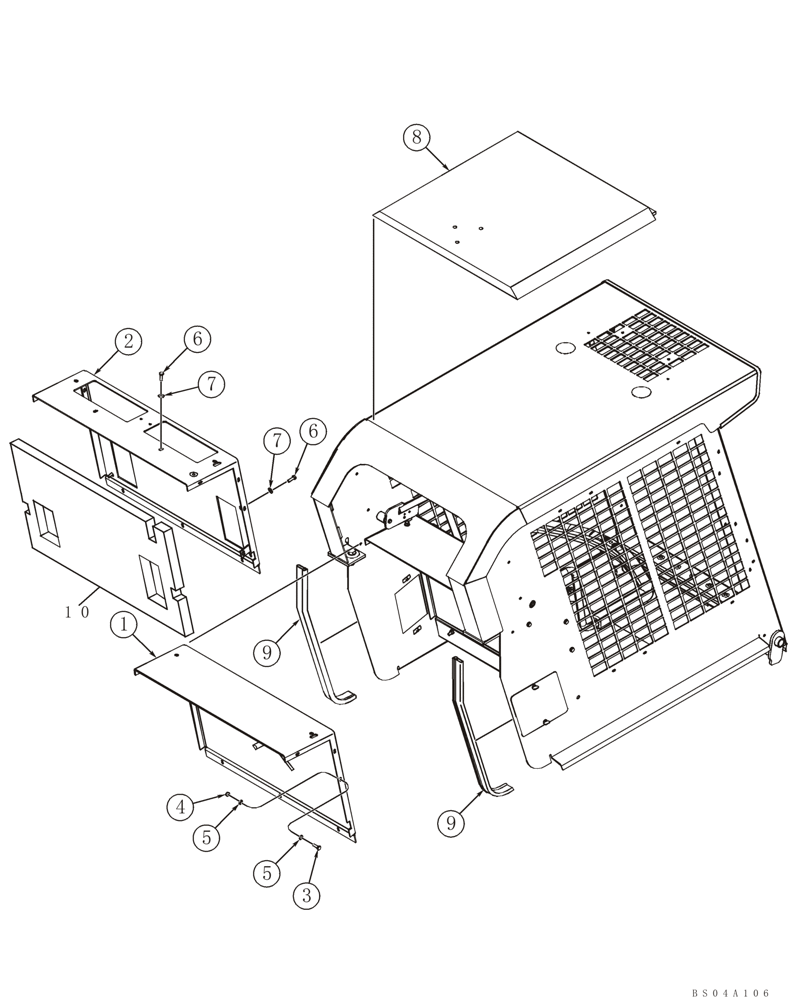

Запчасти Case IH 60XT (09-29) - CANOPY, ROPS - HEADLINER AND HEAT SHIELD (09) - CHASSIS

1

392233A3

PANEL ASSY.

Shield, Heat; Models Without Deluxe Heater

1шт.

2

392235A4

PANEL ASSY.

Shield, Heat; Models With Deluxe Heater; See Figure 09-36

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

Replaces 829-1408

8-9шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Use with Ref. 2

8шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Use with Ref. 2

8шт.

8

372117A4

PANEL

Headliner; Models With Heater; See Figure 09-35, 09-36

1шт.

9

394745A2

SEAL,800mm L

ROPS, Wing; Models With Heater

2шт.

10

433727A2

PANEL

Heat Shield Barrier; Replaces 430495A1

1шт.
