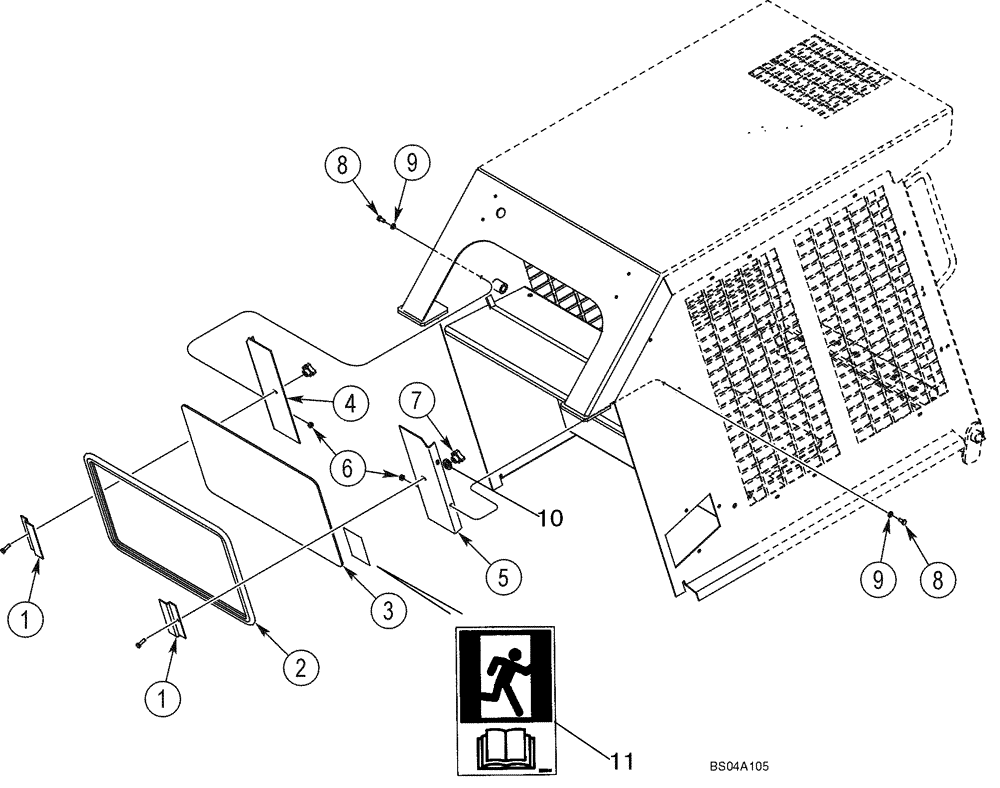

Запчасти Case IH 60XT (09-26) - CANOPY, ROPS - WINDOW, REAR (09) - CHASSIS

1

374730A2

BRACKET

Window Retaining

2шт.

2

374731A2

SEAL,2060mm L

1шт.

3

374729A3

WINDOW

Screen

1шт.

4

376611A3

BRACKET

Left Hand Window Support

1шт.

5

374728A3

BRACKET

Right Hand Window Support

1шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

7

369728A1

KNOB

2шт.

8

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

329051A1

DECAL

Emergency Exit

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
